- Country
- Switzerland
- Manufacturer / Brand
- Deso, Dewald & Sohn, Dewald AG; Zürich
- Year
- 1952–1954
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 321171

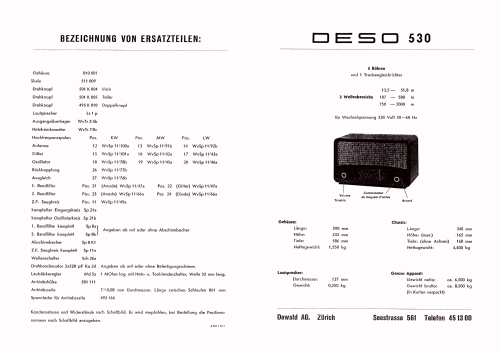

Bild aus dem Service Manual
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 4
- Number of Transistors
- Semiconductors
- SSF250/85B
- Main principle
- Superheterodyne (common); ZF/IF 470 kHz; 2 AF stage(s)
- Tuned circuits
- 6 AM circuit(s)
- Wave bands
- Broadcast, Long Wave and Short Wave.
- Power type and voltage
- Alternating Current supply (AC) / 220 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 12.7 cm = 5 inch
- Power out
- 3.5 W (unknown quality)
- Material
- Wooden case
- from Radiomuseum.org
- Model: 530 - Deso, Dewald & Sohn, Dewald AG
- Shape
- Tablemodel, with any shape - general.
- Dimensions (WHD)
- 390 x 233 x 186 mm / 15.4 x 9.2 x 7.3 inch
- Net weight (2.2 lb = 1 kg)
- 6.5 kg / 14 lb 5.1 oz (14.317 lb)
- Mentioned in
- -- Schematic
- Literature/Schematics (1)
- -- Original-techn. papers.
- Author
- Model page created by Adrian Riesen. See "Data change" for further contributors.
