Java 4022DrK
Deso, Dewald & Sohn, Dewald AG; Zürich
- Country
- Switzerland
- Manufacturer / Brand
- Deso, Dewald & Sohn, Dewald AG; Zürich
- Year
- 1939/1940
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 11846

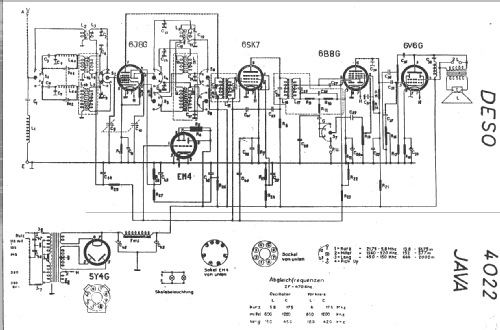

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 6
- Main principle
- Superheterodyne (common); ZF/IF 470 kHz
- Tuned circuits
- 6 AM circuit(s)
- Wave bands
- Broadcast, Long Wave and Short Wave.
- Power type and voltage
- Alternating Current supply (AC) / 110-250 Volt
- Loudspeaker
- Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 20 cm = 7.9 inch
- Material
- Wooden case
- from Radiomuseum.org
- Model: Java 4022DrK - Deso, Dewald & Sohn, Dewald AG
- Dimensions (WHD)
- 560 x 302 x 238 mm / 22 x 11.9 x 9.4 inch
- Net weight (2.2 lb = 1 kg)
- 15.7 kg / 34 lb 9.3 oz (34.581 lb)
- Price in first year of sale
- 410.00 SFr
- External source of data
- E. Erb 3-907007-36-0
- Source of data
- Radiokatalog Band 2, Ernst Erb
