Rio-Grammo-Schrank 288
Deso, Dewald & Sohn, Dewald AG; Zürich
- Country
- Switzerland
- Manufacturer / Brand
- Deso, Dewald & Sohn, Dewald AG; Zürich
- Year
- 1937/1938
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 11829

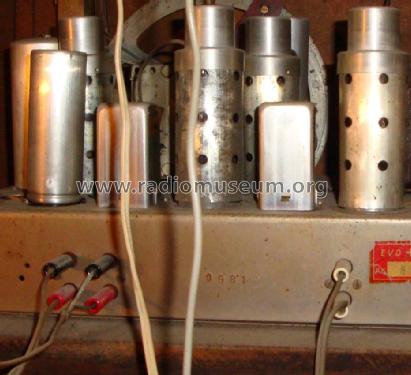

By courtesy of Tom Ruchti, Switzerland.
By courtesy of Tom Ruchti, Switzerland.
By courtesy of Tom Ruchti, Switzerland.
By courtesy of Tom Ruchti, Switzerland.
By courtesy of Tom Ruchti, Switzerland.
By courtesy of Tom Ruchti, Switzerland.
By courtesy of Tom Ruchti, Switzerland.
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 7
- Main principle
- Superheterodyne (common); ZF/IF 470 kHz
- Wave bands
- Broadcast, Long Wave and Short Wave.
- Details
- Record Player (perh.Changer)
- Power type and voltage
- Alternating Current supply (AC)
- Loudspeaker
- Presumably Dynamic Loudspeaker (moving coil)
- Material
- Wooden case
- from Radiomuseum.org
- Model: Rio-Grammo-Schrank 288 - Deso, Dewald & Sohn, Dewald AG
- Shape
- Console with any shape - in general
- Dimensions (WHD)
- 1005 x 850 x 550 mm / 39.6 x 33.5 x 21.7 inch
- Notes
-
Der Rio-Grammo-Schrank 288 von Dewald & Sohn, Marke DESO hat einen Plattenspieler von Lenco.
- Price in first year of sale
- 840.00 SFr
- External source of data
- E. Erb 3-907007-36-0
- Source of data
- Radiokatalog Band 2, Ernst Erb
