• Year
  • 1936 ?
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 112949

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 4
  • Main principle
  • TRF without regeneration
  • Tuned circuits
  • 2 AM circuit(s)
  • Wave bands
  • Broadcast and Short Wave (SW).
  • Power type and voltage
  • AC/DC-set / 115 Volt
  • Loudspeaker
  • Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
  • Material
  • Wooden case
  • from Radiomuseum.org

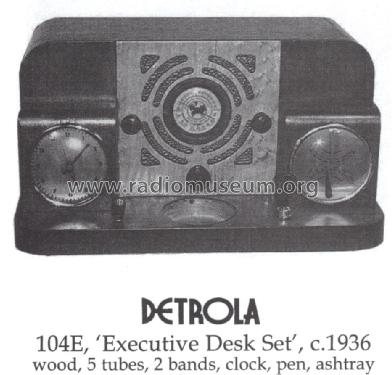

  • Model: 104E - Detrola; Detroit MI
  • Shape
  • Tablemodel with Clock ((Alarm-) Clock Radio).
  • Notes
  • BC and unknown second band. 'Executive Desk Set' with clock, pen and ashtray.
  • Circuit diagram reference
  • Rider's Perpetual, Volume 7 = 1936 and before
