147ECR

Detrola; Detroit (MI)

Data
Forum
Pictures
Collections

  • Year
  • 1937 ??
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 37183

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 8
  • Main principle
  • Superheterodyne (common); ZF/IF 456 kHz; 2 AF stage(s)
  • Tuned circuits
  • 7 AM circuit(s)

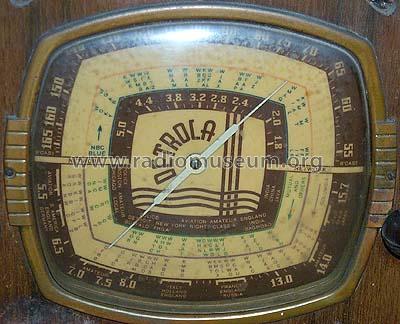

  • Wave bands
  • Broadcast, Short Wave(s) and Police.
  • Power type and voltage
  • Alternating Current supply (AC) / 115 Volt
  • Loudspeaker
  • Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
  • Material
  • Wooden case
  • from Radiomuseum.org
  • Model: 147ECR - Detrola; Detroit MI
  • Notes
  • Push-pull audio amplifier. 7 tuned circuits in BC, 6 in police and SW bands. The Detrola model 147 has been made in many versions - some with and some without 6G5 tuning tube. Push-pull audio amplifier is used, 7 tuned circuits in BC, 6 in police and SW bands. Unfortunately we do not yet know the meaning of the different suffixes like A, B, E etc. It seems that the suffix E stands for the magic eye - and we show a full picture of the 147EA1 which has one - and therefore 8 tubes. Rider's page 8-7 shows the diagram for Detrola 147A, 147B and 147CR with 7 tubes - without magic eye. The Rider's schematic 8-12 is for Detrola 147, 147E and 147ECR. It is stated that model 147 does not use the tuning tube (6G5). Beitman shows a schematic for 147E only - with the 6G5.

    One of the here shown models is an upright table model with 14 x 17.5 x 8.5 inch size - but we don't know which one. We left the photo on model 147 without suffix - just by chance only! It is now depending of you if we can present collectors a full picture ... Please use the contact form for sending information or pictures to a given model.
  • External source of data
  • Ernst Erb
  • Circuit diagram reference
  • Rider's Perpetual, Volume 8 = 1937 and before
