• Country
• United States of America (USA)

• Manufacturer / Brand
• Detrola; Detroit (MI)

• Year
• 1940 ??

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 37265

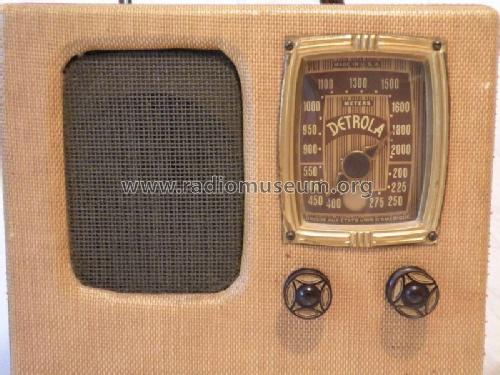

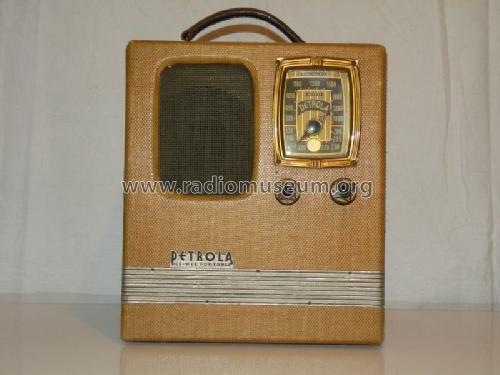

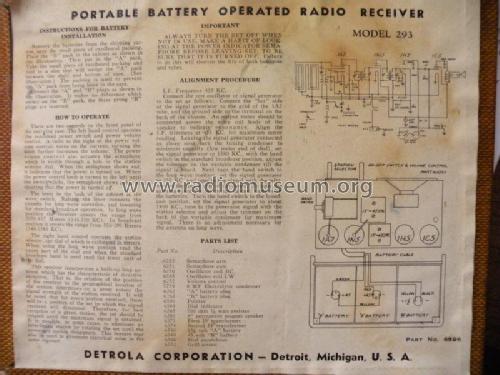

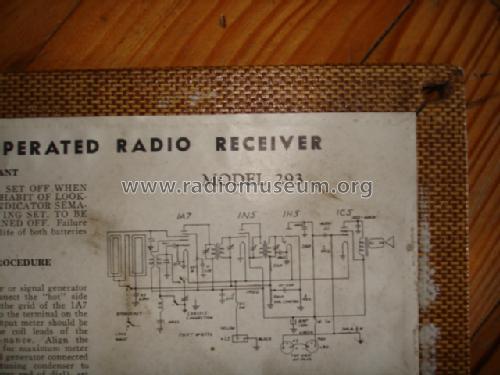

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 4

• Valves / Tubes

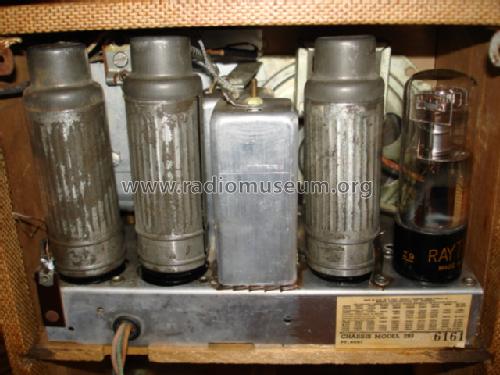

• 1A7 1N5 1H5 1C5

• Main principle
• Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast (MW) and Long Wave.

• Power type and voltage
• Storage and/or dry batteries / 1.5 & 2 x 45 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Material
• Leather / canvas / plastic - over other material

• from Radiomuseum.org
• Model: 293 - Detrola; Detroit MI

• Shape

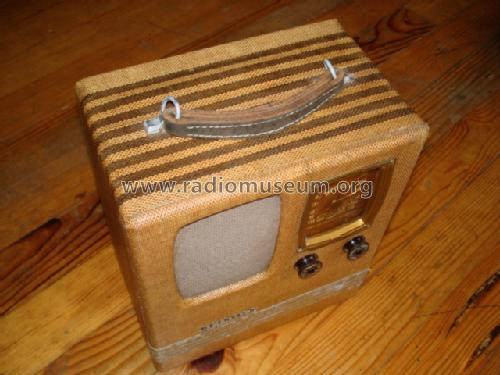

• Portable set > 8 inch (also usable without mains)

• Dimensions (WHD)
• 210 x 280 x 130 mm / 8.3 x 11 x 5.1 inch

• Notes
• Built-in loop antenna used as first RF circuit for LW and BC bands. LW (145-350kHz) and BC (540-1580kHz) bands.

• External source of data
• Ernst Erb

• Circuit diagram reference
• Rider's Perpetual, Volume 11 = ca. 1940 and before

• Other Models

• Here you find 334 models, 195 with images and 291 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
