• Country
• United States of America (USA)

• Manufacturer / Brand
• Detrola; Detroit (MI)

• Year
• 1939

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 37269

• Picture

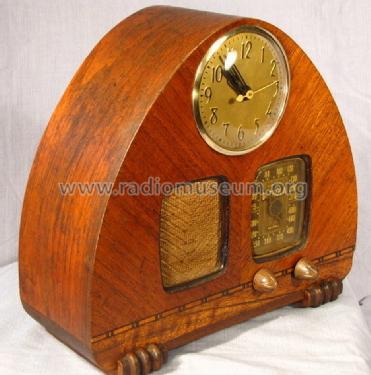

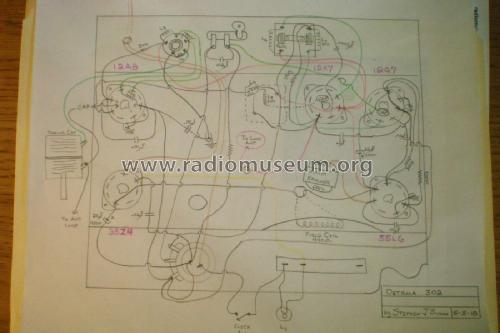

• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes
• 12A8GT 12K7GT 12Q7GT 35L6GT 35Z4GT

• Main principle
• Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• AC/DC-set / 115 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 4 inch = 10.2 cm

• Material
• Wooden case

• from Radiomuseum.org

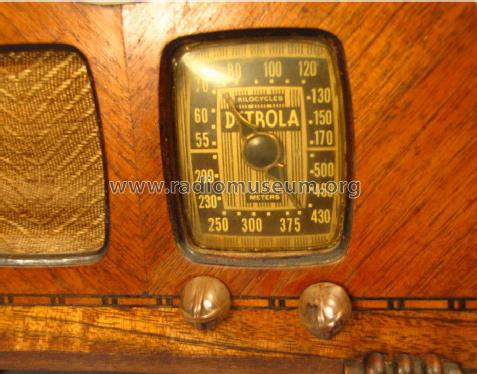

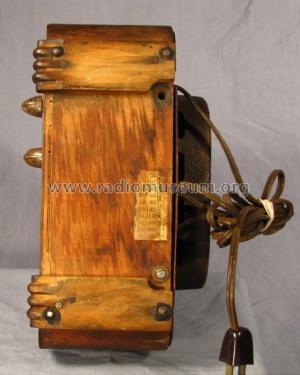

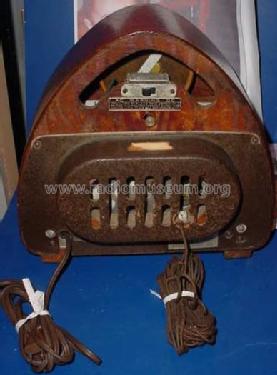

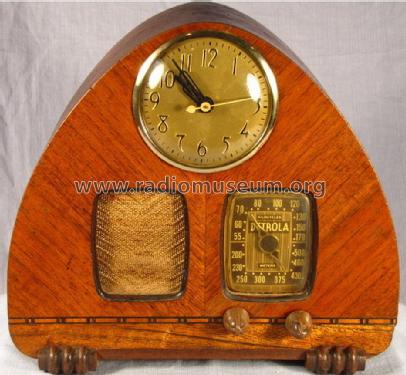

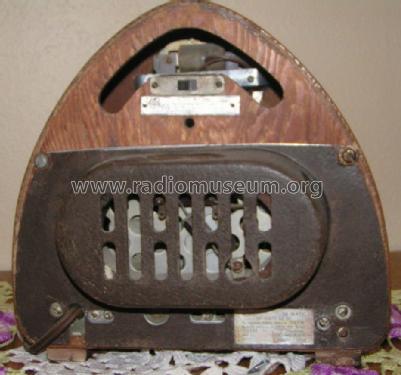

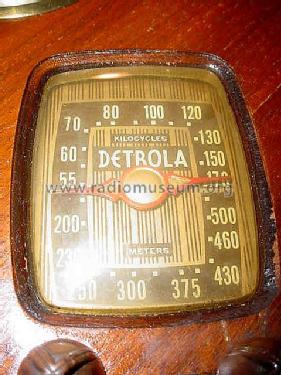

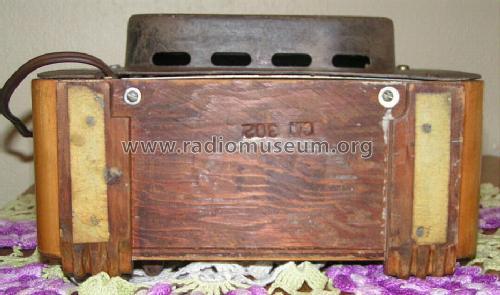

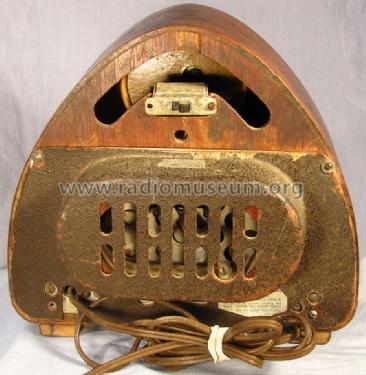

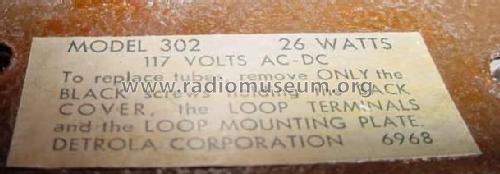

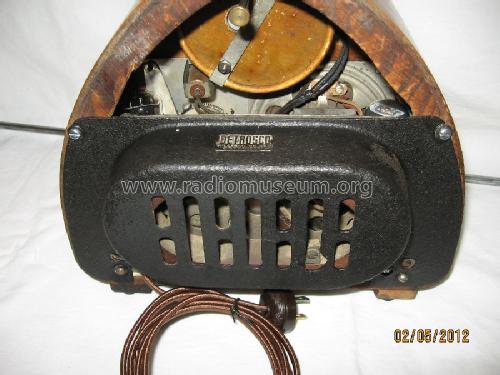

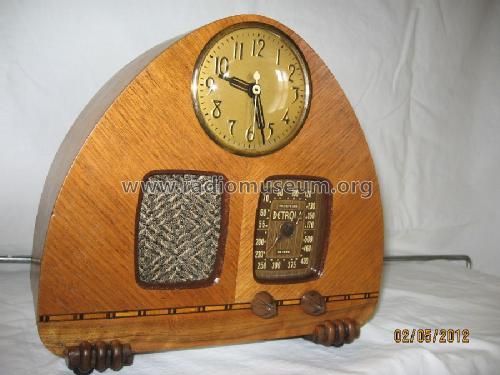

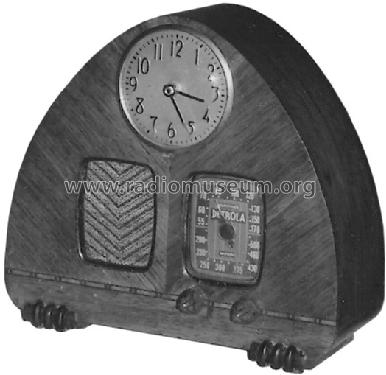

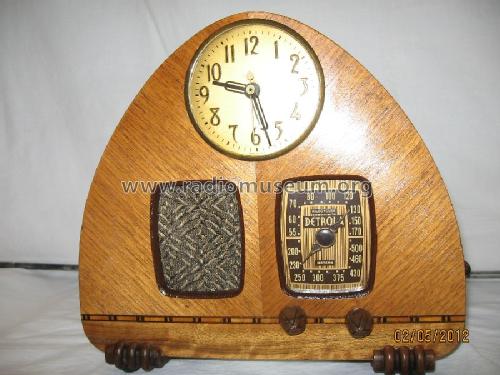

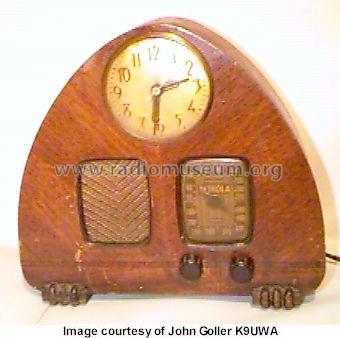

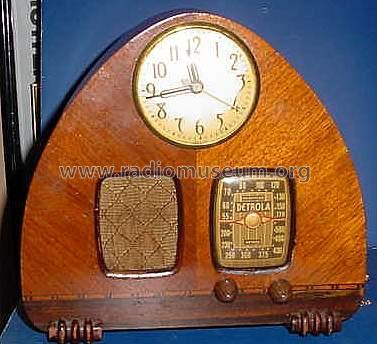

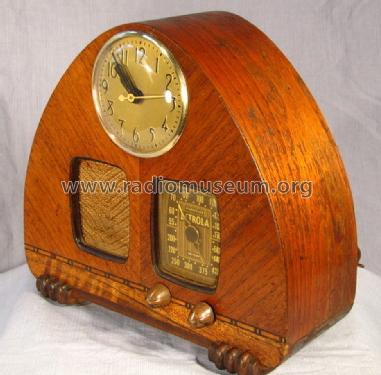

• Model: 302 - Detrola; Detroit MI

• Shape
• Tablemodel with Clock ((Alarm-) Clock Radio).

• Dimensions (WHD)
• 10.2 x 9.3 x 4.25 inch / 259 x 236 x 108 mm

• Notes
• Built-in loop antenna used as first RF circuit. Wood with Marquetry, has clock.

• External source of data
• Ernst Erb

• Source of data
• Collector's Guide to Antique Radios 4. Edition

• Circuit diagram reference
• Rider's Perpetual, Volume 11 = ca. 1940 and before

• Mentioned in
• The Radio Collector's Directory and Price Guide 1921 - 1965

• Other Models

• Here you find 334 models, 195 with images and 291 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
