• Country
• United States of America (USA)

• Manufacturer / Brand
• Detrola; Detroit (MI)

• Year
• 1939 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 356044

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes
• 6A7 6K7 6Q7GT 25L6GT 25Z5 BK49BG

• Main principle
• Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• AC/DC-set / 117 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil)

• Material
• Wooden case

• from Radiomuseum.org

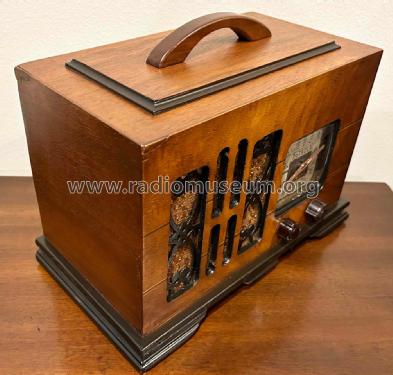

• Model: 3043 Ch= 304 - Detrola; Detroit MI

• Shape
• Tablemodel, with any shape - general.

• Notes

• Refer to the basic model Detrola 304 for additional details.

• Literature/Schematics (1)
• Beitman Radio Diagrams, Vol. 04, 1941 (page 36.)

• Literature/Schematics (2)
• Rider's Perpetual, Volume 11 = ca. 1940 and before (page 11-1.)

• Author
• Model page created by Jerry Elarton. See "Data change" for further contributors.
