• Country
• United States of America (USA)

• Manufacturer / Brand
• Detrola; Detroit (MI)

• Year
• 1941 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 217579

• Number of Tubes
• 5

• Valves / Tubes

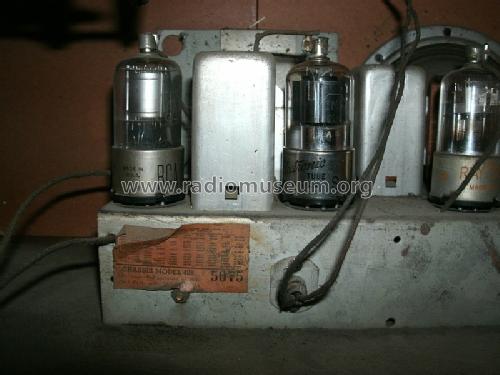

• 1A7 1N5 1H5 3Q5 3Q5

• Main principle
• Superheterodyne (common)

• Wave bands
• Broadcast only (MW).

• Details
• Record Player (not changer)

• Power type and voltage
• Storage and/or dry batteries

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical

• Material
• Wooden case

• from Radiomuseum.org

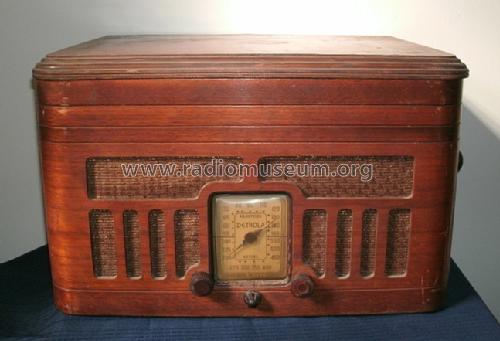

• Model: 408 - Detrola; Detroit MI

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 17.75 x 11 x 13.1 inch / 451 x 279 x 333 mm

• Notes

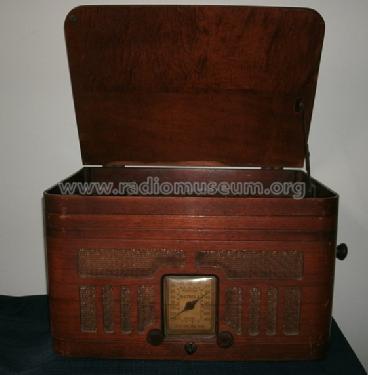

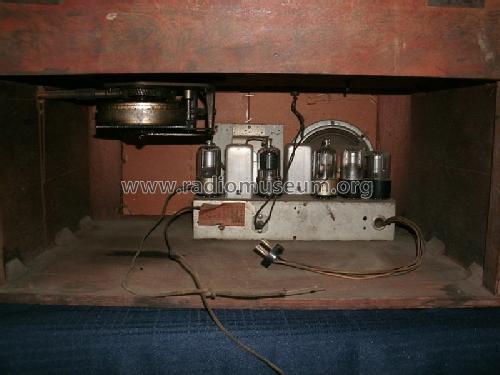

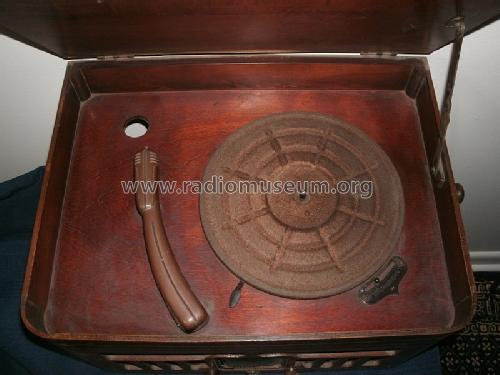

• The 408 is a battery powered radio/amp with a hand cranked phonograph. The cabinet is similar in look & design to the mains operated Detrola 417.

• Literature/Schematics (1)
• Rider's Perpetual, Volume 14 = covering up to late 1942 (C=1944) (Detrola 14-2 and 14-3)

• Author
• Model page created by Mark Skala. See "Data change" for further contributors.
