• Country
• United States of America (USA)

• Manufacturer / Brand
• Detrola; Detroit (MI)

• Year
• 1948

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 149803

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 4

• Valves / Tubes
• 1A7GT 1N5GT 1H5GT 3Q5GT

• Main principle
• ZF/IF 455 kHz; 2 AF stage(s)

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• Storage and/or dry batteries / 1.5 & 90 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 6 inch = 15.2 cm

• from Radiomuseum.org
• Model: 610-A - Detrola; Detroit MI

• Shape
• Tablemodel, low profile (big size).

• Notes
• The Detrola Model 610-A is a Battery operated Superheterodyne Receiver.

• Literature/Schematics (1)

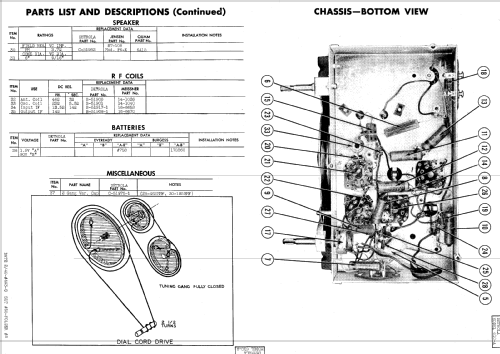

• Photofact Folder, Howard W. SAMS (Date 2-49, Set 55, Folder 8)

• Author
• Model page created by Egon Penker. See "Data change" for further contributors.
