• Country
• United States of America (USA)

• Manufacturer / Brand
• Detrola; Detroit (MI)

• Year
• 1946

• Category
• Sound/Video Recorder and/or Player

• Radiomuseum.org ID
• 37383

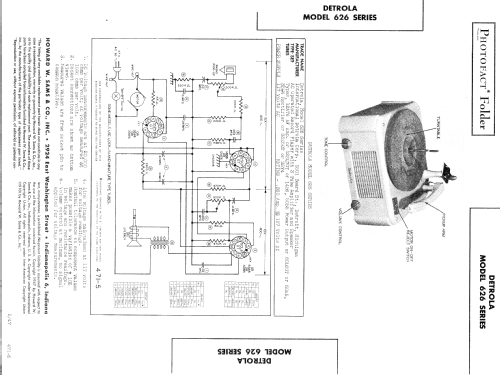

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 3

• Valves / Tubes
• 12AT6 50B5 35W4

• Main principle
• Audio-Amplification; 2 AF stage(s)

• Wave bands
• - without

• Details
• Changer (Record changer)

• Power type and voltage
• Alternating Current supply (AC) / 117 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 4 inch = 10.2 cm

• from Radiomuseum.org
• Model: 626 series [miniature tubes] - Detrola; Detroit MI

• Shape
• Tablemodel, with any shape - general.

• Notes
• The model Detrola 626 series is an AC Operated Record Player with 3 Tubes Amplifier and Speaker.

• External source of data
• Ernst Erb

• Circuit diagram reference
• Rider's Perpetual, Volume 17 = 1948 and before

• Literature/Schematics (1)
• Photofact Folder, Howard W. SAMS (Date: Jan 1947, Set 11, Folder 471-5)
