- Country
- United States of America (USA)
- Manufacturer / Brand
- Detrola; Detroit (MI)
- Year
- 1948 ?
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 37396

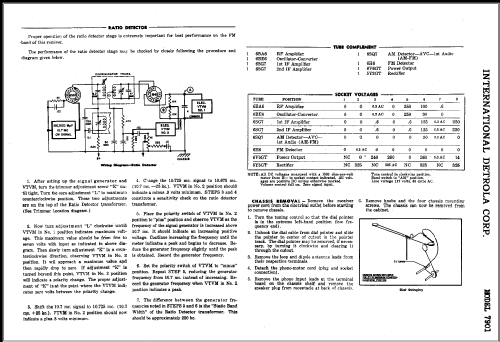

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 8
- Main principle
- Superhet with RF-stage; ZF/IF 455;10700 kHz; 2 AF stage(s)
- Tuned circuits
- 9 AM circuit(s) 9 FM circuit(s)
- Wave bands
- Broadcast (BC) and FM or UHF.
- Details
- Record Player (perh.Changer)
- Power type and voltage
- Alternating Current supply (AC) / 117 Volt
- Loudspeaker
- Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
- from Radiomuseum.org
- Model: 7901 - Detrola; Detroit MI
- Notes
- Built-in loop for BC band, folded dipol for FM band. BC band 535-1620 kHz, FM band 88-108 MHz. Permeabilty tuning system.
- External source of data
- Ernst Erb
- Circuit diagram reference
- Rider's Perpetual, Volume 17 = 1948 and before
