• Country
• United States of America (USA)

• Manufacturer / Brand
• Detrola; Detroit (MI)

• Year
• 1935 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 351544

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 7

• Valves / Tubes
• 78 78 37 78 75 42 80

• Main principle
• Superhet with RF-stage; ZF/IF 262 kHz; 2 AF stage(s)

• Tuned circuits
• 7 AM circuit(s)

• Wave bands
• Broadcast plus more than 2 Short Wave bands.

• Power type and voltage
• Alternating Current supply (AC) / 117 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 8 inch = 20.3 cm

• Power out
• 3 W (max.)

• Material
• Wooden case

• from Radiomuseum.org

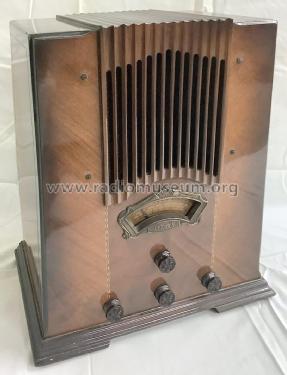

• Model: 7A [full vision dial] - Detrola; Detroit MI

• Shape
• Tablemodel, Tombstone = decorative upright, not cathedral but can have rounded edges.

• Dimensions (WHD)
• 14 x 18 x 9 inch / 356 x 457 x 229 mm

• Notes

• According to our member Harry Luginsky, this should be the first version of Detrola model 7A.

  Separate oscillator tube (37). BC (550-1520 kHz), TROP (1.5-4.0 MHz), SW1 (3.6-10.0 MHz) and SW2 (8.0-10.0 MHz) bands.

  See also Detrola 7A with Airplane dial and different cabinet style.  The chassis is identical.

• Literature/Schematics (1)
• Rider's Perpetual, Volume 6 = 1935 and before (Riders Vol. VI, page 6-15 and 6-16 Detrola Radio Corp.)

• Author
• Model page created by Bernhard Nagel. See "Data change" for further contributors.
