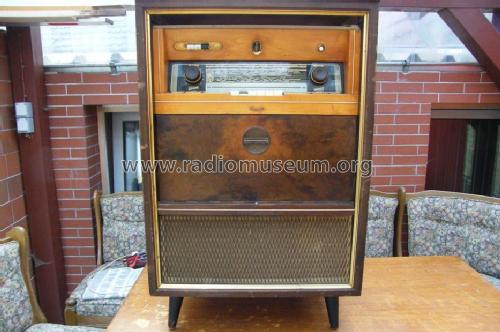

Polydor Musiktruhe C62 DG Ch= Siemens C62
Deutsche Grammophon-AG; Berlin
- Country
- Germany
- Manufacturer / Brand
- Deutsche Grammophon-AG; Berlin
- Year
- 1956 ?
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 197375
-
- Brand: Polydor
Frontseite alle Klappen geöffnet
- Number of Tubes
- 7
- Number of Transistors
- Semiconductors
- Tr.Gl.=Metal-rectif.
- Main principle
- Superheterodyne (common); ZF/IF 460/10700 kHz; 2 AF stage(s)
- Tuned circuits
- 6 AM circuit(s) 9 FM circuit(s)
- Wave bands
- Broadcast, Long Wave, Short Wave plus FM or UHF.
- Details
- Other Combination - see Notes
- Power type and voltage
- Alternating Current supply (AC) / 110-250 Volt

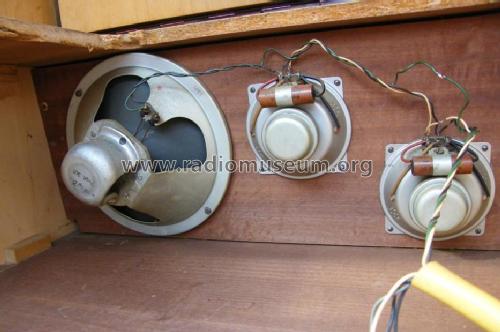

- Loudspeaker
- 3 Loudspeakers
- Power out
- 4.5 W (unknown quality)
- Material
- Wooden case
- from Radiomuseum.org
- Model: Polydor Musiktruhe C62 DG Ch= Siemens C62 - Deutsche Grammophon-AG; Berlin
- Shape
- Console, Lowboy (legs < 50 %).
- Dimensions (WHD)
- 580 x 900 x 430 mm / 22.8 x 35.4 x 16.9 inch
- Notes
-
Ausstattung mit Schallbandspieler-Chassis Tefifon HS19 (Spannung 220 V) oder mit Plattenspieler Perpetuum-Ebner REX A.
- Author
- Model page created by Mario Darmann. See "Data change" for further contributors.
