6-Tube Radio
DeVry Technical Institute; Chicago
- Country
- United States of America (USA)
- Manufacturer / Brand
- DeVry Technical Institute; Chicago
- Year
- 1948 ??
- Category
- Kit (Parts plus instruction) or building instructions only
- Radiomuseum.org ID
- 276979
- Number of Tubes
- 6
- Main principle
- Superheterodyne (common); ZF/IF 455 kHz
- Wave bands
- Broadcast only (MW).
- Power type and voltage
- Alternating Current supply (AC) / 120 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 5 inch = 12.7 cm
- from Radiomuseum.org
- Model: 6-Tube Radio - DeVry Technical Institute;
- Shape
- Chassis only or for «building in»
- Dimensions (WHD)
- 12 x 7 x 8 inch / 305 x 178 x 203 mm
- Notes
-

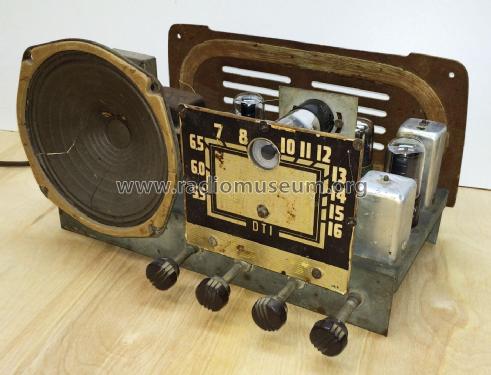

AM broadcast receiver built by students of radio courses at Devry Technical Institute, Chicago, Illionois, USA. Kit is chassis only; no cabinet included.
- Author
- Model page created by Thomas Albrecht. See "Data change" for further contributors.
