• Country
• Spain

• Manufacturer / Brand
• de Wald; Barcelona

• Year
• 1962 ??

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 316666

• Number of Tubes
• 5

• Valves / Tubes
• UCH81 UF89 UF89 UL84 UY85

• Main principle
• Superheterodyne (common); ZF/IF 465 kHz; 2 AF stage(s)

• Wave bands
• Broadcast and Short Wave (SW).

• Power type and voltage
• Alternating Current supply (AC) / 125/220 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical / Ø 14 cm = 5.5 inch

• Power out
• 2.5 W (undistorted)

• Material
• Bakelite case

• from Radiomuseum.org

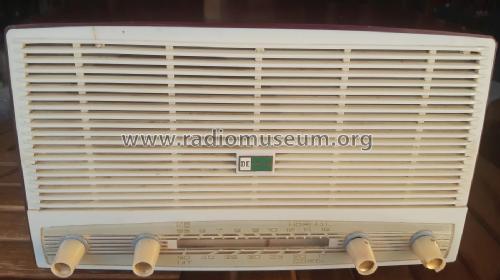

• Model: 325 - de Wald; Barcelona

• Shape
• Tablemodel without push buttons, Mantel/Midget/Compact up to 14

• Dimensions (WHD)
• 320 x 190 x 180 mm / 12.6 x 7.5 x 7.1 inch

• Net weight (2.2 lb = 1 kg)
• 4 kg / 8 lb 13 oz (8.811 lb)

• Author
• Model page created by Armand Reig Gonzalez. See "Data change" for further contributors.
