- Country
- United States of America (USA)
- Manufacturer / Brand
- DeWald Radio Mfg. Corp., Pierce Airo Inc.
- Year
- 1931
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 37476
-
- Brand: Pierce Airo

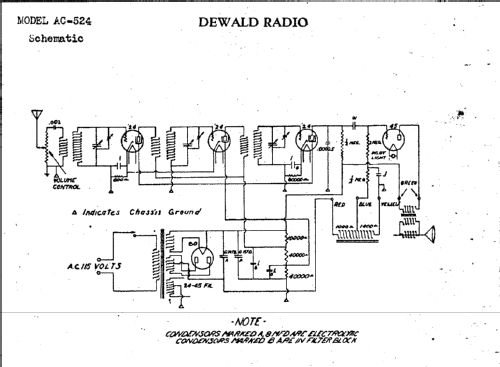

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 5
- Main principle
- TRF without regeneration; 1 AF stage(s); Screengrid 1926-1935
- Tuned circuits
- 3 AM circuit(s)
- Wave bands
- Broadcast only (MW).
- Power type and voltage
- Alternating Current supply (AC) / 115 Volt
- Loudspeaker
- Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 21 cm = 8.3 inch
- Material
- Wooden case
- from Radiomuseum.org
- Model: AC-524 - DeWald Radio Mfg. Corp.,
- Shape
- Table-Cathedral-Type (upright, round top or gothic arch, not rounded edges only).
- Dimensions (WHD)
- 355 x 465 x 250 mm / 14 x 18.3 x 9.8 inch
- Notes
- One dial (primary tuning control knob).
- Net weight (2.2 lb = 1 kg)
- 13.5 kg / 29 lb 11.8 oz (29.736 lb)
- External source of data
- Ernst Erb
- Source of data
- The Radio Collector's Directory and Price Guide 1921 - 1965
- Circuit diagram reference
- Rider's Perpetual, Volume 2 = 1932 (Models 1931/1932)
- Mentioned in
- Machine Age to Jet Age II
- Literature/Schematics (1)
- Cathedral & Tombstone Radios
- Literature/Schematics (3)
- Radio Collector`s Guide 1921-1932
