- Country
- United States of America (USA)
- Manufacturer / Brand
- DeWald Radio Mfg. Corp., Pierce Airo Inc.
- Year
- 1939/1940
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 37498
-
- Brand: Pierce Airo

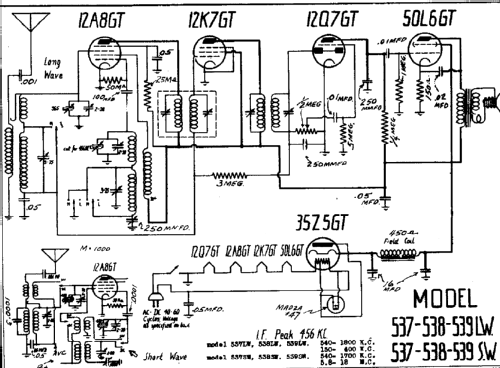

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 5
- Main principle
- Superheterodyne (common); ZF/IF 456 kHz; 2 AF stage(s)
- Tuned circuits
- 6 AM circuit(s)
- Wave bands
- Broadcast and Short Wave (SW).
- Power type and voltage
- AC/DC-set / 105-125 Volt
- Loudspeaker
- Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
- Material
- Wooden case
- from Radiomuseum.org
- Model: 537SW - DeWald Radio Mfg. Corp.,
- Shape
- Tablemodel, with any shape - general.
- Notes
-
BC (540-1700kHz) and SW (5.8-18MHz) bands. Range 16-51 and 170-555 Meters.
- Price in first year of sale
- 22.45 $
- External source of data
- Ernst Erb
- Circuit diagram reference
- Rider's Perpetual, Volume 11 = ca. 1940 and before
- Mentioned in
- Table Top Radios Vol. 4 Stein 2003
- Literature/Schematics (3)
- The DeWald Folder for 1940, Form. 50M 1-40 L.
