- Country
- United States of America (USA)
- Manufacturer / Brand
- DeWald Radio Mfg. Corp., Pierce Airo Inc.
- Year
- 1941
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 37693
-
- Brand: Pierce Airo

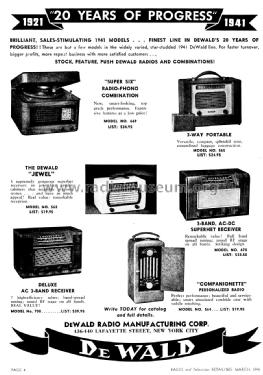

Scanned from the Radio Retailing March 1941.
Scanned from the Radio Retailing March 1941.
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 7
- Main principle
- Superhet with RF-stage; ZF/IF 455 kHz; 2 AF stage(s)
- Tuned circuits
- 6 AM circuit(s)
- Wave bands
- Broadcast plus 2 Short Wave bands.
- Power type and voltage
- Alternating Current supply (AC) / 105-125 Volt
- Loudspeaker
- Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
- Material
- Wooden case
- from Radiomuseum.org
- Model: 708 - DeWald Radio Mfg. Corp.,
- Shape
- Tablemodel, with any shape - general.
- Notes
- BC, SW1 (4.7-10MHz) and SW2 (11.5-24MHz) bands. Tuning eye with 6U5 or 6G5 tube.
- Price in first year of sale
- 39.95 $
- External source of data
- Ernst Erb
- Source of data
- Collector's Guide to Antique Radios 4. Edition
- Circuit diagram reference
- Rider's Perpetual, Volume 12 = ca. 1941 and before
- Literature/Schematics (1)
- Radio Retailing (Radio & Television R.) (March 1941.)
