- Country
- United States of America (USA)
- Manufacturer / Brand
- DeWald Radio Mfg. Corp., Pierce Airo Inc.
- Year
- 1948
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 192336
-
- Brand: Pierce Airo
SAMS Photofact

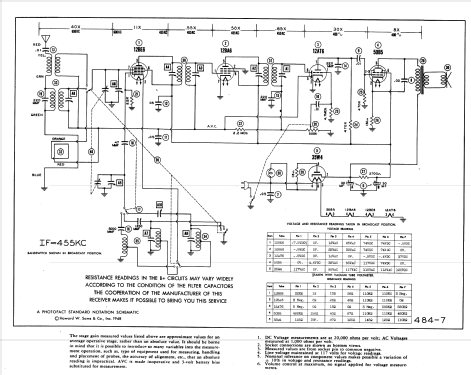

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 5
- Main principle
- Superheterodyne (common); 1 AF stage(s)
- Power type and voltage
- AC/DC-set / 117 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- Material
- Bakelite or Plastics (type unknown)
- from Radiomuseum.org

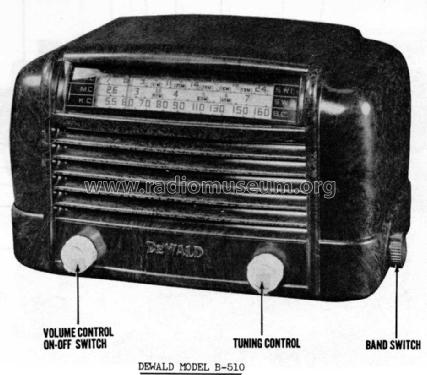

- Model: B-510 - DeWald Radio Mfg. Corp.,
- Shape
- Tablemodel, with any shape - general.
- Literature/Schematics (4)

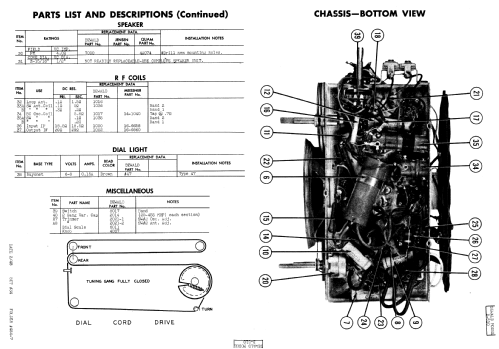

- Photofact Folder, Howard W. SAMS (Set 34, Date 2/48, Folder 484-7)
- Author
- Model page created by Ernst Erb. See "Data change" for further contributors.
