C-800

DeWald Radio Mfg. Corp., Pierce Airo Inc.

Data

Forum

Pictures

Collections

Country
United States of America (USA)

Manufacturer / Brand
DeWald Radio Mfg. Corp., Pierce Airo Inc.

Year
1949

Category
Broadcast Receiver - or past WW2 Tuner

Radiomuseum.org ID
37744

- Brand: Pierce Airo

Schematics

C-800 ; DeWald Radio Mfg. (ID = 106501) Radio — DeWald Radio Mfg. C-800 (3)
Beitman

C-800 ; DeWald Radio Mfg. (ID = 263873) Radio — DeWald Radio Mfg. C-800 (3)
Rider

C-800 ; DeWald Radio Mfg. (ID = 263874) Radio — DeWald Radio Mfg. C-800 (3)

C-800 ; DeWald Radio Mfg. (ID = 519205) Radio — DeWald Radio Mfg. C-800 (3)

C-800 ; DeWald Radio Mfg. (ID = 519206) Radio — DeWald Radio Mfg. C-800 (3)

C-800 ; DeWald Radio Mfg. (ID = 519200) Radio — DeWald Radio Mfg. C-800 (3)

C-800 ; DeWald Radio Mfg. (ID = 519203) Radio — DeWald Radio Mfg. C-800 (3)

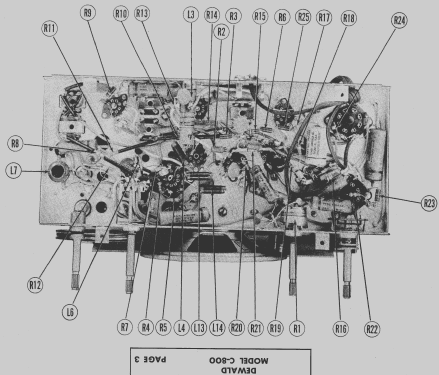

C-800 ; DeWald Radio Mfg. (ID = 519204) Radio — DeWald Radio Mfg. C-800 (3)

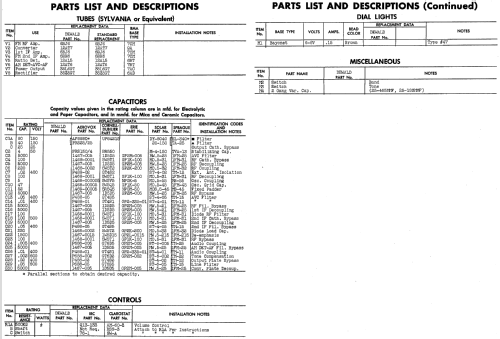

C-800 ; DeWald Radio Mfg. (ID = 519201) Radio — DeWald Radio Mfg. C-800 (3)

C-800 ; DeWald Radio Mfg. (ID = 519202) Radio — DeWald Radio Mfg. C-800 (3)

C-800 ; DeWald Radio Mfg. (ID = 519207) Radio — DeWald Radio Mfg. C-800 (3)

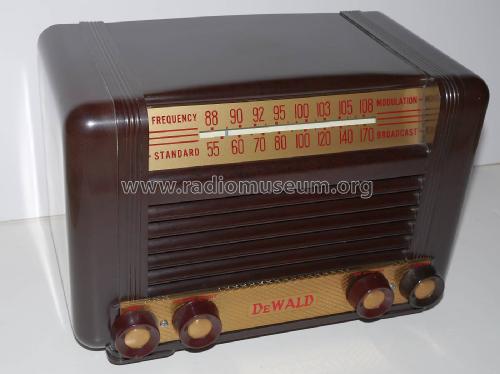

C-800 ; DeWald Radio Mfg. (ID = 2056498) Radio — DeWald Radio Mfg. C-800 (1)

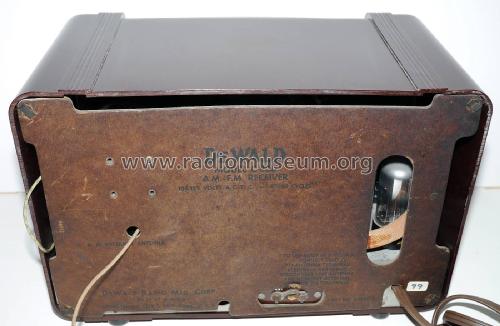

C-800 ; DeWald Radio Mfg. (ID = 2056499) Radio — DeWald Radio Mfg. C-800 (1)

C-800 ; DeWald Radio Mfg. (ID = 2056500) Radio — DeWald Radio Mfg. C-800 (1)

C-800 ; DeWald Radio Mfg. (ID = 56751) Radio — DeWald Radio Mfg. C-800 (2)
Copy gen. von Radio Attic

C-800 ; DeWald Radio Mfg. (ID = 711733) Radio — DeWald Radio Mfg. C-800 (2)
Sams Photofact Folders reference picture.

C-800 ; DeWald Radio Mfg. (ID = 719517) Radio — DeWald Radio Mfg. C-800 (2)

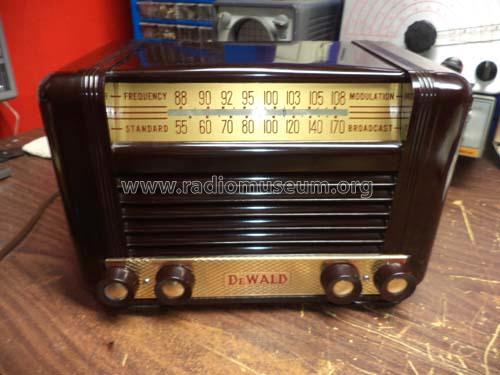

C-800 ; DeWald Radio Mfg. (ID = 1455671) Radio — DeWald Radio Mfg. C-800 (1)

C-800 ; DeWald Radio Mfg. (ID = 1455672) Radio — DeWald Radio Mfg. C-800 (1)

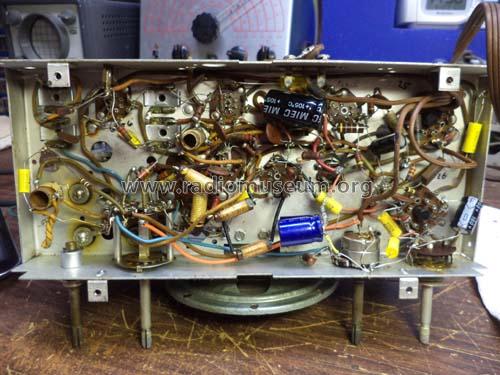

C-800 ; DeWald Radio Mfg. (ID = 1455673) Radio — DeWald Radio Mfg. C-800 (1)

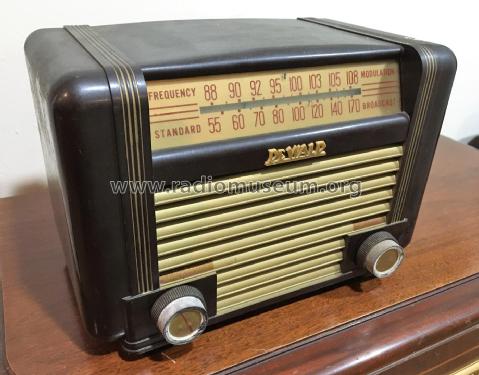

C-800 ; DeWald Radio Mfg. (ID = 2112998) Radio — DeWald Radio Mfg. C-800 (1)

C-800 ; DeWald Radio Mfg. (ID = 2913010) Radio — DeWald Radio Mfg. C-800 (2)

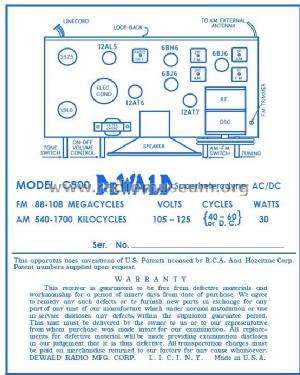

RECONSTRUCTED LABEL

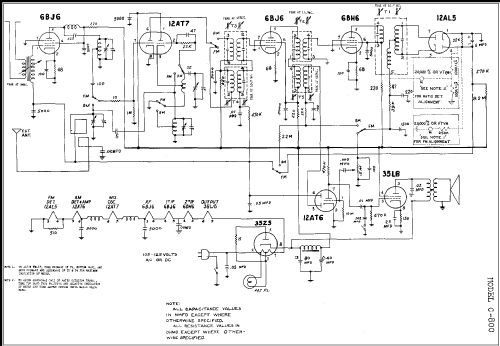

Click on the schematic thumbnail to request the schematic as a free document.

Technical Specifications

Number of Tubes
8

Valves / Tubes
6BJ6 12AT7 6BJ6 6BH6 12AL5 12AT6 35L6 35Z5

Main principle
Superheterodyne (common); ZF/IF 455/10700 kHz; 2 AF stage(s)

Tuned circuits
6 AM circuit(s) 8 FM circuit(s)

Wave bands
Broadcast (BC) and FM or UHF.

Power type and voltage
AC/DC-set / 105-125 Volt

Loudspeaker
Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 5 inch = 12.7 cm

Material
Bakelite case

from Radiomuseum.org
Model: C-800 - DeWald Radio Mfg. Corp.,

Shape
Tablemodel, with any shape - general.

Dimensions (WHD)
12 x 8 x 6.75 inch / 305 x 203 x 171 mm

Notes
BC(540-1700kHz) band with built-in loop antenna and FM(88-108MHz) band.
Bakelite brown or painted.

External source of data
Ernst Erb

Source of data
Collector's Guide to Antique Radios 4. Edition

Circuit diagram reference
Rider's Perpetual, Volume 20 covering 1950

Mentioned in
The Radio Collector's Directory and Price Guide 1921 - 1965 (Beitman Radio Diagrams 1950)

Literature/Schematics (1)
Photofact Folder, Howard W. SAMS (Date 9-49, Set 69, Folder 7)

Literature/Schematics (2)
Machine Age to Jet Age II

Other Models
Here you find 443 models, 195 with images and 344 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
