- Country
- United States of America (USA)
- Manufacturer / Brand
- DeWald Radio Mfg. Corp., Pierce Airo Inc.
- Year
- 1950 ?
- Category
- Television Receiver (TV) or Monitor
- Radiomuseum.org ID
- 243184
-
- Brand: Pierce Airo
SAMS Photofact Vol.8/50 82-5 Set 82 Folder 5

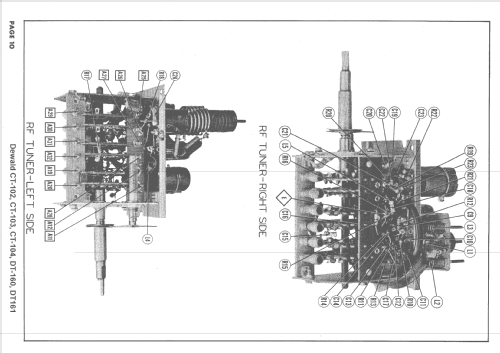

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 22
- Valves / Tubes
- 6J6 6J6 6J6 6AG5 6AG5 6AG5 6AL5 12AU7 6AG5 6AU6 6AL5 6AT6 6K6GT 12AU7 6SN7GT 6AL5 6SN7GT 6BG6G 5V4G 1B3GT 5U4G 10BP4
- Main principle
- Superheterodyne (common)
- Wave bands
- Wave Bands given in the notes.
- Power type and voltage
- Alternating Current supply (AC) / 110-120 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 6 inch = 15.2 cm
- Material
- Wooden case
- from Radiomuseum.org
- Model: CT-102 - DeWald Radio Mfg. Corp.,
- Shape
- Tablemodel, low profile (big size).
- Notes
-
Televison Receiver 10" picture tube
Channels 2 thru 13
Tube V1 alternative 6AG5, V8 6SN7GT in early production, V9 6BA6
in RF Tuner are used V301, V302, V303 3 times 6J6
- Mentioned in
- Photofact Folder, Howard W. SAMS (Date 1-50, Set 82 Folder 5)
- Author
- Model page created by Friedrich Weber † 12.09.2014. See "Data change" for further contributors.
- Other Models
-
Here you find 442 models, 195 with images and 344 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
All listed radios etc. from DeWald Radio Mfg. Corp., Pierce Airo Inc.
