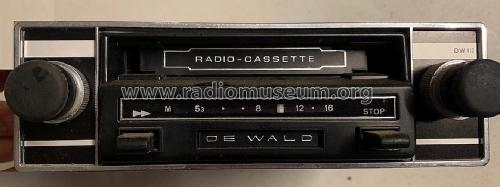

DW-410
de Wald; Barcelona
- Country
- Spain
- Manufacturer / Brand
- de Wald; Barcelona
- Year
- 1973
- Category
- Car Radio, perhaps also + sound player/recorder
- Radiomuseum.org ID
- 231584
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Transistors
- 12
- Semiconductors
- BF195 BF194 BF195 BF195 BC149 BC149 BD135 2N4291 BC148 AC188 BD561 BD562 MFC8020A 1N4148 SFD107
- Main principle
- Superheterodyne (common)
- Wave bands
- Broadcast only (MW).
- Details
- Cassette-Recorder or -Player
- Power type and voltage
- Storage Battery for all (e.g. for car radios and amateur radios) / 12 Volt
- Loudspeaker
- - This model requires external speaker(s).
- Material
- Metal case
- from Radiomuseum.org
- Model: DW-410 - de Wald; Barcelona
- Shape
- Chassis only or for «building in»
- Literature/Schematics (1)
- -- Original-techn. papers. (Esquemario Magnetófonos y Cassettes REDE, Tomo III, 1976)
- Author
- Model page created by Miguel Bravo-Cos. See "Data change" for further contributors.
