- Country
- United States of America (USA)
- Manufacturer / Brand
- DeWald Radio Mfg. Corp., Pierce Airo Inc.
- Year
- 1951 ?
- Category
- Television Receiver (TV) or Monitor
- Radiomuseum.org ID
- 343578
-
- Brand: Pierce Airo

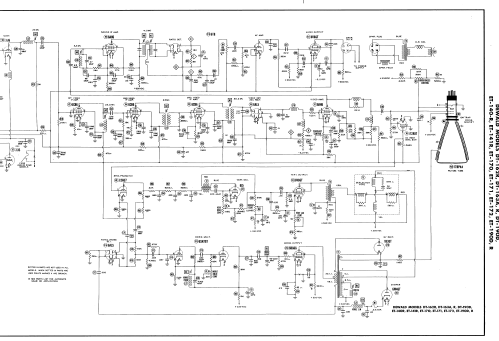

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 20
- Valves / Tubes
- 6CB6 or 6BC5 or 6AG5 6J6 6CB6 6CB6 6CB6 6AL5 6AH6 12AU7 6AU6 6T8 6V6GT 6J5 6V6GT 6AL5 6SN7GT 6BG6 6W4GT 1B3GT 5U4G 17BP4A
- Main principle
- Superhet with RF-stage
- Wave bands
- Wave Bands given in the notes.
- Power type and voltage
- Alternating Current supply (AC) / 117V = 110 -120 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- Material
- Wooden case
- from Radiomuseum.org
- Model: ET-141R - DeWald Radio Mfg. Corp.,
- Shape
- Tablemodel, with any shape - general.
- Notes
-
Dewald model ET-141R is a 17” b/w TV with US standard VHF tuner channels 2 thru 13.
Equipped with VHF-tuner 7023B-1 and picture tube 17BP4A.
- Literature/Schematics (1)
- Photofact Folder, Howard W. SAMS (Set 123 folder 1A dated 2-51)
- Literature/Schematics (2)
- Photofact Folder, Howard W. SAMS (Set 136, folder 7, dated 6-51)
- Author
- Model page created by Dirk Taekels. See "Data change" for further contributors.
