• Country
• Spain

• Manufacturer / Brand
• de Wald; Barcelona

• Year
• 1968 ?

• Category
• Television Receiver (TV) or Monitor

• Radiomuseum.org ID
• 323827

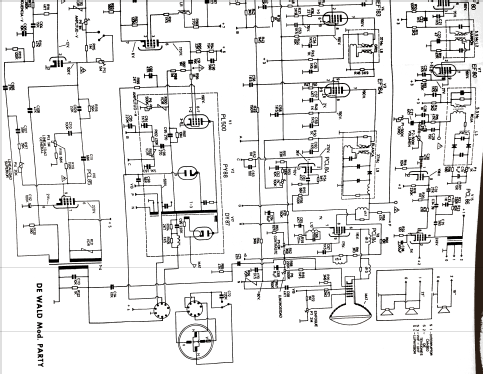

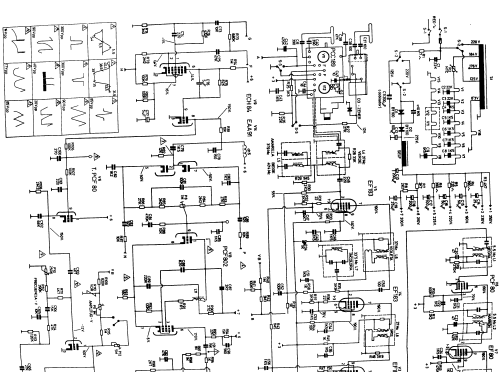

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 17

• Valves / Tubes
• PCC189 PCF86 EF183 EF183 EF184 PCL84 PCF80 EF80 PCL86 ECH84 EAA91 PCL85 PCF802 PL500 PY88 DY87 unknown_CRT

• Main principle
• Superhet with RF-stage

• Wave bands
• VHF incl. FM and/or UHF (see notes for details)

• Power type and voltage
• Alternating Current supply (AC) / 125; 220 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Material
• Wooden case

• from Radiomuseum.org
• Model: Party 11" - de Wald; Barcelona

• Shape
• Tablemodel, low profile (big size).

• Notes

• TV B/N. De este modelo se crearon en 19" y 23", este último incorpora 2 altavoces.

  El sintonizador de UHF es transistorizado.

• Mentioned in
• -- Schematic (Esquemario de TV REDE TOMO V 1969)

• Author
• Model page created by Toni Gutiérrez García. See "Data change" for further contributors.

• Other Models

• Here you find 118 models, 93 with images and 31 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
  All listed radios etc. from de Wald; Barcelona
