Radioreceptor 345
de Wald; Barcelona
- Country
- Spain
- Manufacturer / Brand
- de Wald; Barcelona
- Year
- 1962 ??
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 306896
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 5
- Main principle
- Superheterodyne (common); 2 AF stage(s)
- Tuned circuits
- 3 AM circuit(s)
- Wave bands
- Broadcast and Short Wave (SW).
- Power type and voltage
- AC/DC-set / 125 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical / Ø 15 cm = 5.9 inch
- Power out
- 3 W (max.)
- Material
- Wooden case
- from Radiomuseum.org

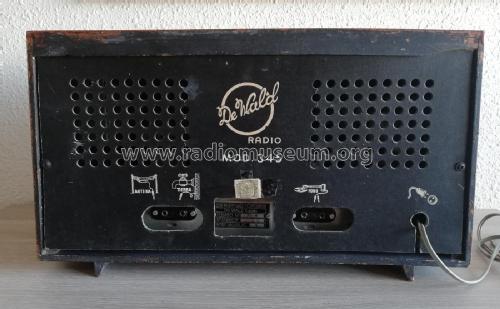

- Model: Radioreceptor 345 - de Wald; Barcelona
- Shape
- Tablemodel, low profile (big size).
- Dimensions (WHD)
- 440 x 245 x 180 mm / 17.3 x 9.6 x 7.1 inch
- Notes
-
Altavoz elíptico 150 x 110 mm.
- Net weight (2.2 lb = 1 kg)
- 4 kg / 8 lb 13 oz (8.811 lb)
- Author
- Model page created by Alberto Sanna-Alonso. See "Data change" for further contributors.
