• Country
• United States of America (USA)

• Manufacturer / Brand
• Diamond T Radio; South Bend, IN

• Year
• 1927

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 37780

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 6

• Valves / Tubes

• Main principle
• TRF without regeneration

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• Storage and/or dry batteries

• Loudspeaker
• -Loudspeaker incorporated, but system not known.

• Material
• Wooden case

• from Radiomuseum.org

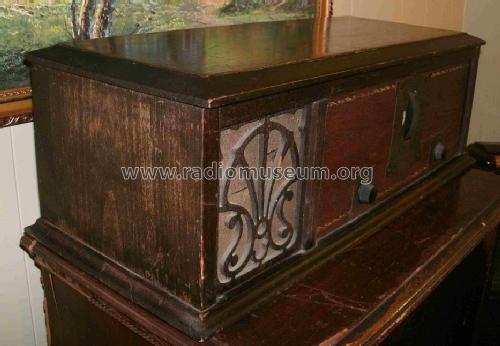

• Model: DiamondSpecial - Diamond T Radio; South Bend,

• Shape
• Tablemodel, with any shape - general.

• Notes

• One dial (primary tuning control knob)

• Price in first year of sale
• 75.00 $

• External source of data
• Ernst Erb

• Source of data
• Radio Collector`s Guide 1921-1932

• Mentioned in
• The Radio Collector's Directory and Price Guide 1921 - 1965
