• Country
• Japan

• Manufacturer / Brand
• Dia Musen Sangyo Co.,Ltd., Tokyo

• Year
• 1959

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 194185

• Number of Transistors
• 8

• Semiconductors

• Main principle
• Superheterodyne (common); ZF/IF 455 kHz

• Tuned circuits
• 5 AM circuit(s)

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• Dry Batteries / AA: 4 x 1.5 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 6 cm = 2.4 inch

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org
• Model: Capri DMS-801A - Dia Musen Sangyo Co.,Ltd.,

• Shape
• Very small Portable or Pocket-Set (Handheld) < 8 inch.

• Dimensions (WHD)
• 140 x 90 x 34 mm / 5.5 x 3.5 x 1.3 inch

• Notes

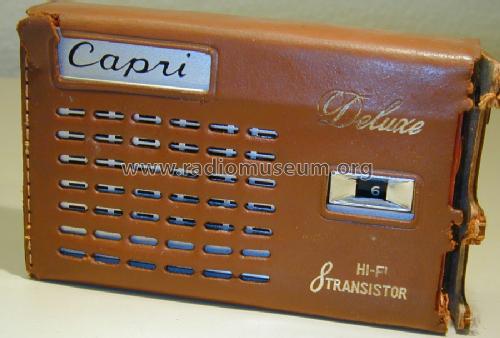

• Capri 8 transistor AM radio with leather case.

  Similar to the models reported under Dia Rock DMS-801A.

• Net weight (2.2 lb = 1 kg)
• 0.310 kg / 0 lb 10.9 oz (0.683 lb)

• Author
• Model page created by Eckhard Wegner. See "Data change" for further contributors.

• Other Models

• Here you find 5 models, 5 with images and 0 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
  All listed radios etc. from Dia Musen Sangyo Co.,Ltd., Tokyo
