• Country
• Germany

• Manufacturer / Brand
• Dierking NF/HF Technik, Eurofrequence; Dissen, Pleitersheim

• Year
• 1976

• Category
• Amateur Equipment (Other, but not Key)

• Radiomuseum.org ID
• 229191

• Number of Tubes
• 2

• Valves / Tubes
• EC8010 EC8020

• Main principle
• Radio Frequency Amplification only

• Wave bands
• Wave Bands given in the notes.

• Power type and voltage
• Powered by external power supply or a main unit.

• Loudspeaker
• - - No sound reproduction output.

• Material
• Metal case, TUBES VISIBLE

• from Radiomuseum.org

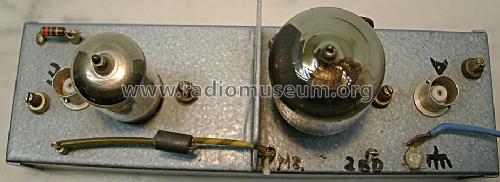

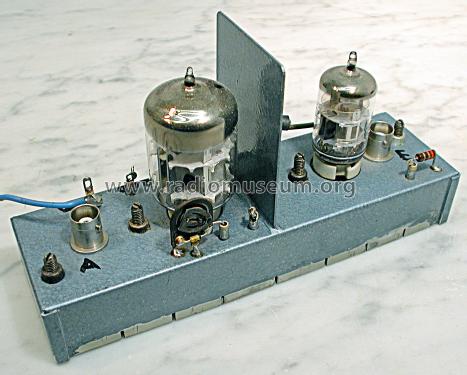

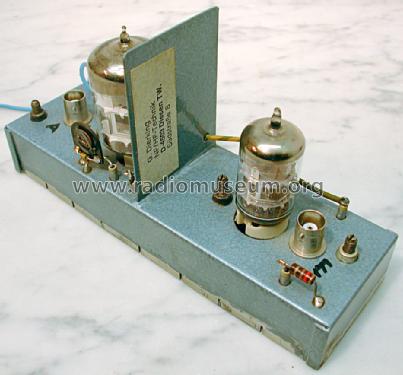

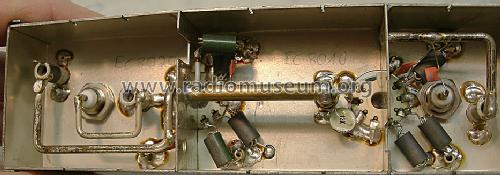

• Model: UHF-Linearverstärker 70 cm - Dierking NF/HF Technik,

• Shape
• Chassis only or for «building in»

• Dimensions (WHD)
• 160 x 84 x 50 mm / 6.3 x 3.3 x 2 inch

• Notes

• Linearverstärkermodul für 70 cm Amateurfunkbereich. Pin 100 mW, Pout 10 Watt.

• Author
• Model page created by Jörg Holtzapfel. See "Data change" for further contributors.
