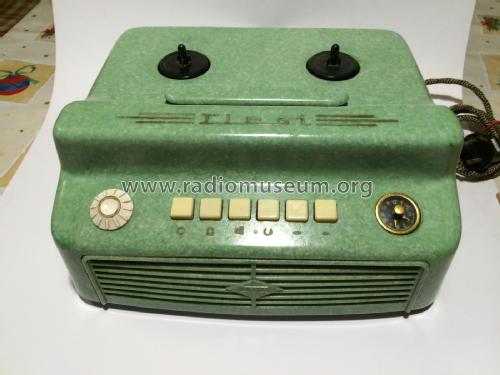

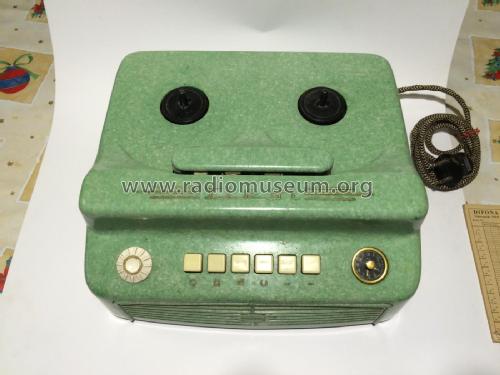

Tipsi (Diktiergerät)
Dittmar, Gerhard (Difona), Potsdam; (Ostd.)
- Country
- Germany
- Manufacturer / Brand
- Dittmar, Gerhard (Difona), Potsdam; (Ostd.)
- Year
- 1957/1958
- Category
- Sound/Video Recorder and/or Player
- Radiomuseum.org ID
- 77945
aus Lange III
Aus einem Prospekt
Diktatzettel
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 3
- Main principle
- Audio-Amplification
- Details
- Tape Recorder
- Power type and voltage
- Alternating Current supply (AC) / 110-220 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- from Radiomuseum.org
- Model: Tipsi - Dittmar, Gerhard Difona,
- Shape
- Tablemodel with Push Buttons.
- Dimensions (WHD)
- 310 x 130 x 280 mm / 12.2 x 5.1 x 11 inch
- Notes
- Doppelspurgerät 9,5 cm/s, 200-4000 Hz. Bedienung durch Mikrofon mit Schaltern, Fußschalter oder Tasten am Gerät. Automatische Aussteuerung, Bandzähluhr. 2x30 Min. ohne Umlegen des Bandes, da für jede Spur ein A/W- und Lösch-Kopf vorhanden ist.
- Source of data
- Radiokatalog Band 2, Ernst Erb
- Circuit diagram reference
- Lange Schaltungen der Funkindustrie, Buch 3
- Mentioned in
- -- Original prospect or advert
- Literature/Schematics (1)
- Funkverlag Hein, Service-CD
- Author
- Model page created by Wolfgang Eckardt. See "Data change" for further contributors.
