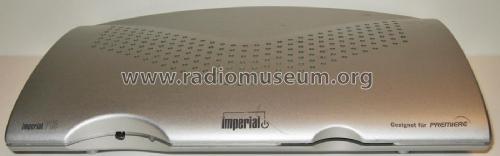

Digitaler Satelliten-Receiver Imperial P1S
DigitalSat Deutschland GmbH; (Wo?)
- Country
- Germany
- Manufacturer / Brand
- DigitalSat Deutschland GmbH; (Wo?)
- Year
- 2004 ??
- Category
- Digital terrestrial, Internet and SAT receiver (also analogue)
- Radiomuseum.org ID
- 349671
- Number of Transistors
- Semiconductors present.
- Semiconductors
- Main principle
- PLL, Phase-locked loop
- Wave bands
- SAT-IF
- Details
- Remote Control (with wire or wireless)
- Power type and voltage
- Powered by external power supply or a main unit. / DC: 12 Volt
- Loudspeaker
- - For headphones or amp.
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org
- Model: Digitaler Satelliten-Receiver Imperial P1S - DigitalSat Deutschland GmbH;
- Shape
- Book-shelf unit.
- Dimensions (WHD)
- 250 x 40 x 155 mm / 9.8 x 1.6 x 6.1 inch
- Notes
-
DVB-S-Receiver zum Empfang freier und verschlüsselter digitaler Programme.
Anschlüsse für LNB (F-Type), DC-Buchse (für Hohlstecker), SCART, Audio analog L+R (2×Cinch), Audio digital (Cinch), SmartCard-Reader frontseitig.
Betrieb über externes 12-V-Netzteil. Leistungsaufnahme max. 20 Watt.
Made in Germany.
- Net weight (2.2 lb = 1 kg)
- 0.410 kg / 0 lb 14.4 oz (0.903 lb)
- Author
- Model page created by Michael Mischke. See "Data change" for further contributors.
