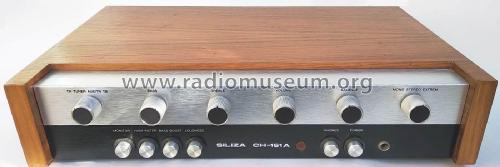

Siliza CH-161A
Diodus Electronic AG; Baden
- Country
- Switzerland
- Manufacturer / Brand
- Diodus Electronic AG; Baden
- Year
- 1970/1971 ??
- Category
- Audio Amplifier or -mixer
- Radiomuseum.org ID
- 327626
- Number of Transistors
- 28
- Semiconductors
- Main principle
- Audio-Amplification
- Wave bands
- - without
- Details
- Hi-Fi equipment
- Power type and voltage
- Alternating Current supply (AC) / 220 Volt
- Loudspeaker
- - This model requires external speaker(s).
- Material
- Various materials
- from Radiomuseum.org
- Model: Siliza CH-161A - Diodus Electronic AG; Baden
- Shape
- Book-shelf unit.
- Dimensions (WHD)
- 380 x 80 x 250 mm / 15 x 3.1 x 9.8 inch
- Notes
-

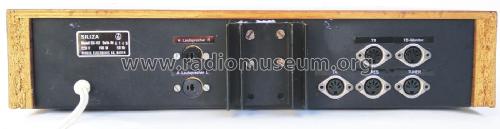

Eingänge für TA magn., Tuner, AUX/TR, Tonband und Tonband-Monitor
Druckschalter für Tiefpass, Loudness, Bass-Boost
Leistungsaufnahme 190W
Gehäuse: Boden/Rückwand Stahlblech, Front Aluminium, Abdeckung Span-/Sperrholzplatte Echtholzfourniert
- Net weight (2.2 lb = 1 kg)
- 5.350 kg / 11 lb 12.5 oz (11.784 lb)
- Author
- Model page created by Marc Gianella. See "Data change" for further contributors.
