DML-302 25503
Unitra DIORA - Radiowerk Dzierzoniow,
- Country
- Poland
- Manufacturer / Brand
- Unitra DIORA - Radiowerk Dzierzoniow,
- Year
- 1971
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 106947
Click on the schematic thumbnail to request the schematic as a free document.

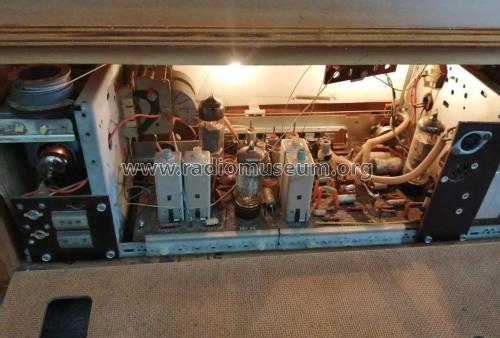

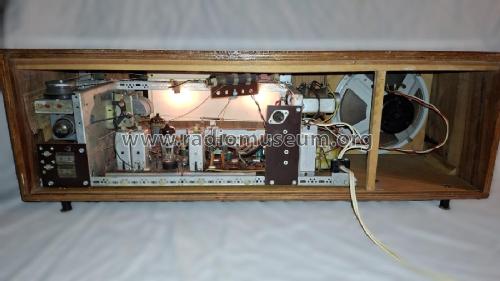

- Number of Tubes
- 4
- Main principle
- Superheterodyne (common); ZF/IF 465/10700 kHz
- Tuned circuits
- 6 AM circuit(s) 9 FM circuit(s)
- Wave bands
- Broadcast, Long Wave, Short Wave plus FM or UHF.
- Power type and voltage
- Alternating Current supply (AC) / 220 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- Power out
- 1 W (undistorted)
- Material
- Wooden case
- from Radiomuseum.org

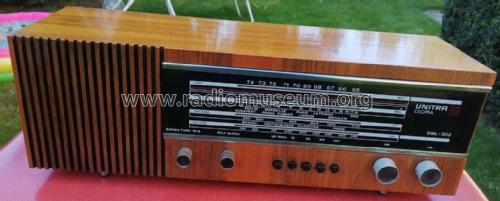

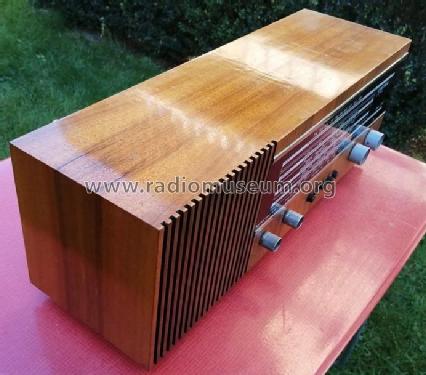

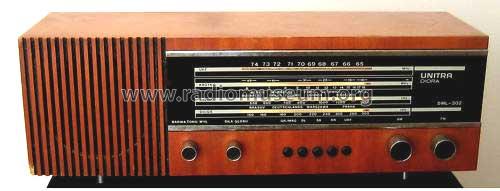

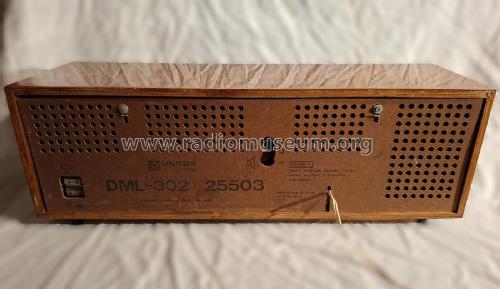

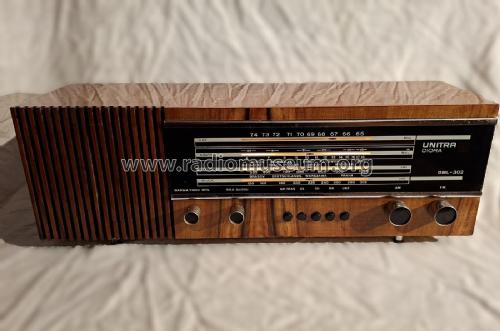

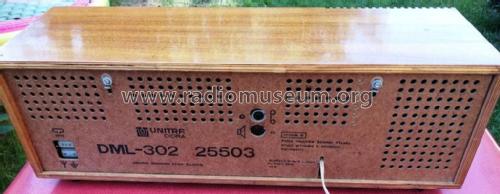

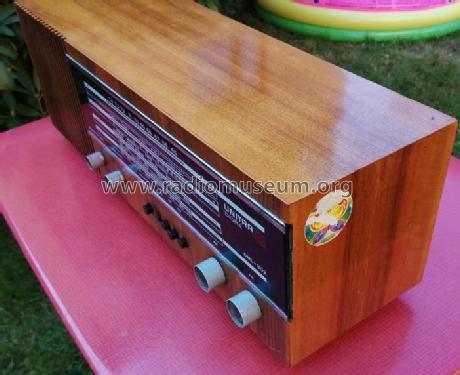

- Model: DML-302 25503 - Unitra DIORA - Radiowerk
- Shape
- Tablemodel, with any shape - general.
- Dimensions (WHD)
- 610 x 215 x 185 mm / 24 x 8.5 x 7.3 inch
- Notes
-
Der Empfänger DML-302 hat Anschlüsse für TA/ TB und für einen Lautsprecher. Getrennte Abstimmung für AM und FM. UKW nach OIRT.
- Net weight (2.2 lb = 1 kg)
- 8 kg / 17 lb 9.9 oz (17.621 lb)
- Source of data
- -- Collector info (Sammler)
- Author
- Model page created by Franz Scharner. See "Data change" for further contributors.
