• Country
• Poland

• Manufacturer / Brand
• Unitra DIORA - Radiowerk Dzierzoniow,

• Year
• 1971

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 107130

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes
• ECC85 ECH81 EF183 EBF89 EM84

• Number of Transistors
• 9

• Semiconductors
• BC528 BC528 BC528 AC180 AD161 AD162 TG50 TG50 TG71

• Main principle
• Superheterodyne (common); ZF/IF 465 kHz

• Tuned circuits
• 8 AM circuit(s)     11 FM circuit(s)

• Wave bands
• Broadcast, Long Wave, more than 2 x SW plus FM or UHF.

• Power type and voltage
• Alternating Current supply (AC) / 220 Volt

• Loudspeaker
• - This model requires external speaker(s).

• Power out
• 5 W (unknown quality)

• Material
• Wooden case

• from Radiomuseum.org

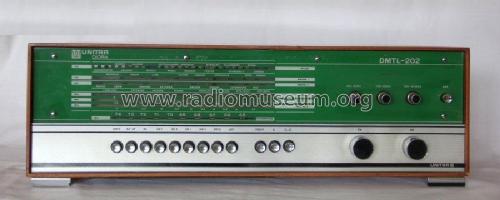

• Model: DMT/L-202 [25801] - Unitra DIORA - Radiowerk

• Shape
• Tablemodel, with any shape - general.

• Dimensions (WHD)
• 620 x 200 x 260 mm / 24.4 x 7.9 x 10.2 inch

• Notes

• Wellenbereiche:
  LW, 2 x MW, 3 x KW, UKW (66-73 MHz, OIRT)

  Eingang für Plattenspieler und Tonbandgerät

• Net weight (2.2 lb = 1 kg)
• 10 kg / 22 lb 0.4 oz (22.026 lb)

• Literature/Schematics (3)
• -- Schematic

• Author
• Model page created by Franz Scharner. See "Data change" for further contributors.
