• Country
• Poland

• Manufacturer / Brand
• Unitra DIORA - Radiowerk Dzierzoniow,

• Year
• 1948

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 106641

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 4

• Valves / Tubes

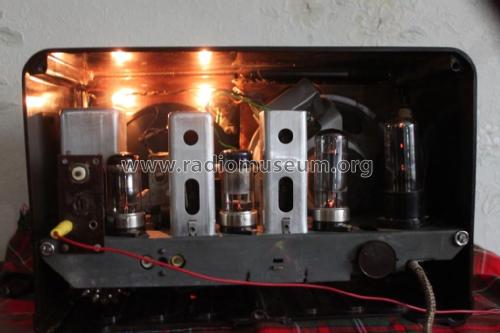

• UCH21 UCH21 UBL21 UY1N

• Main principle
• Superheterodyne (common)

• Wave bands
• Broadcast, Long Wave and Short Wave.

• Power type and voltage
• AC/DC-set / 125/220 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Material
• Bakelite case

• from Radiomuseum.org

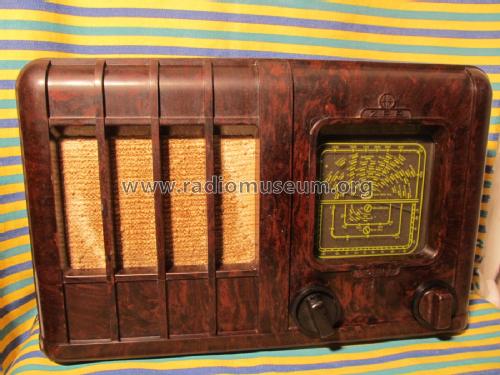

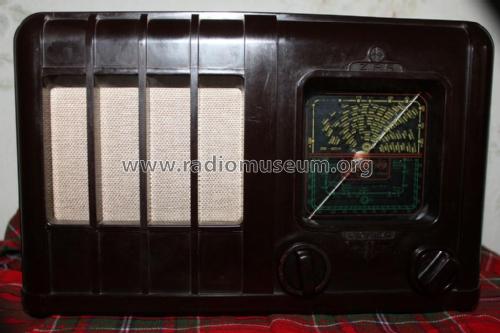

• Model: Pionier 48 [old] - Unitra DIORA - Radiowerk

• Shape
• Tablemodel, with any shape - general.

• Dimensions (WHD)
• 350 x 225 x 170 mm / 13.8 x 8.9 x 6.7 inch

• Source of data
• -- Collector info (Sammler)

• Author
• Model page created by Franz Scharner. See "Data change" for further contributors.
