• Country
• Poland

• Manufacturer / Brand
• Unitra DIORA - Radiowerk Dzierzoniow,

• Year
• 1961

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 107098

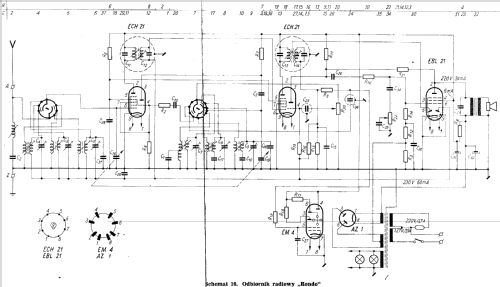

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes
• ECH21 ECH21 EBL21 AZ1 EM4

• Main principle
• Superheterodyne (common)

• Wave bands
• Broadcast, Long Wave and Short Wave.

• Power type and voltage
• Alternating Current supply (AC) / 220 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical

• Material
• Wooden case

• from Radiomuseum.org
• Model: Rondo 6212 - Unitra DIORA - Radiowerk

• Shape
• Tablemodel, with any shape - general.

• Dimensions (WHD)
• 560 x 226 x 335 mm / 22 x 8.9 x 13.2 inch

• Net weight (2.2 lb = 1 kg)
• 8.5 kg / 18 lb 11.6 oz (18.722 lb)

• Source of data
• -- Collector info (Sammler)

• Author
• Model page created by Franz Scharner. See "Data change" for further contributors.
