• Country
• Poland

• Manufacturer / Brand
• Unitra DIORA - Radiowerk Dzierzoniow,

• Year
• 1985 ??

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 106923

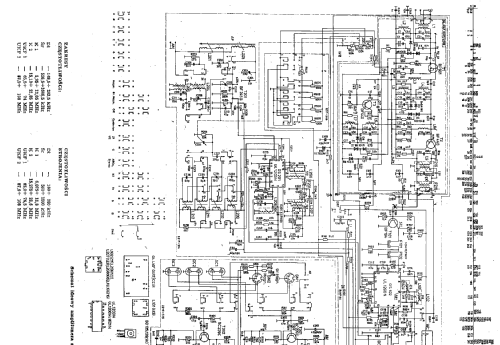

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 35

• Semiconductors
• BF961 BF440 BF440 BF245 BF194 BC239 BC239 BC238 BC308 BC239 BC239 BC239 BC239 BC239 BC239 BC239 BC238 BC237 BD135 BC307 BC307 BD139 BD135 BD139 BD140 BDP395 BDP396 BC307 BC307 BD139 BD135 BD139 BD140 BDP395 BDP396 UL1200

• Main principle
• Superheterodyne (common); ZF/IF 465/10700 kHz

• Wave bands
• Broadcast, (BC) Long Wave (LW), 2 x SW and FM or UHF.

• Power type and voltage
• Alternating Current supply (AC) / 220 Volt

• Loudspeaker
• - This model requires external speaker(s).

• Material
• Metal case

• from Radiomuseum.org
• Model: Tosca AWS-306 - Unitra DIORA - Radiowerk

• Shape
• Book-shelf unit.

• Dimensions (WHD)
• 440 x 90 x 260 mm / 17.3 x 3.5 x 10.2 inch

• Notes

• Der Tosca AWS-306 ist eine Weiterentwicklung des Tosca AWS-303.

• Source of data
• -- Collector info (Sammler)

• Author
• Model page created by Franz Scharner. See "Data change" for further contributors.
