Traper DMP-401
Unitra DIORA - Radiowerk Dzierzoniow,
- Country
- Poland
- Manufacturer / Brand
- Unitra DIORA - Radiowerk Dzierzoniow,
- Year
- 1976
- Category
- Car Radio, perhaps also + sound player/recorder
- Radiomuseum.org ID
- 107043

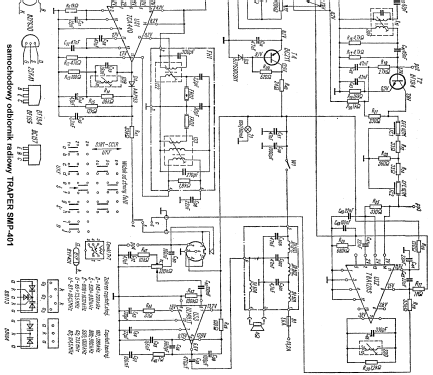

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Transistors
- 7
- Main principle
- Superheterodyne (common); ZF/IF 465/10700 kHz
- Wave bands
- Broadcast, Long Wave and FM or UHF.
- Power type and voltage
- Storage Battery for all (e.g. for car radios and amateur radios) / 12 Volt
- Loudspeaker
- - This model requires external speaker(s).
- Material
- Metal case
- from Radiomuseum.org
- Model: Traper DMP-401 - Unitra DIORA - Radiowerk
- Shape
- Chassis only or for «building in»
- Notes
-
Coverage LW, 2× MW and 2× FM.
Das Autoradio Traper DMP-401 enthält 7 Transistoren und 3 ICs, TCA440, TBA120S und UL1481T. Der Bereich MW ist aufgeteilt in MW1 und MW2, FM ist nach OIRT (65 - 73,5 MHz) und nach CCIR (87 - 104,5 MHz) zu empfangen. Die Abstimmung für AM und für FM erfolgt durch C- Dioden.
- Source of data
- -- Collector info (Sammler)
- Author
- Model page created by Franz Scharner. See "Data change" for further contributors.
