• Country
• Poland

• Manufacturer / Brand
• Unitra DIORA - Radiowerk Dzierzoniow,

• Year
• 1980

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 106995

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 28

• Semiconductors
• BF215 BF215 BF215 BF214 BF214 BF214 BF214 BF214 BC313 BC313 BF214 BF214 BF214 BF214 BF214 BC109 BC109 BC158 BC143 BC158 BC149 BC149 BC149 BC148 BC149 BC109 BC149 BC149

• Main principle
• Superheterodyne (common); ZF/IF 465/10700 kHz

• Tuned circuits
• 8 AM circuit(s)     15 FM circuit(s)

• Wave bands
• Broadcast, Long Wave, more than 2 x SW plus FM or UHF.

• Power type and voltage
• Alternating Current supply (AC) / 220 Volt

• Loudspeaker
• - For headphones or amp.

• Material
• Various materials

• from Radiomuseum.org

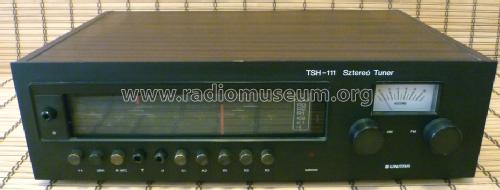

• Model: TSH Stereo TSH-111 - Unitra DIORA - Radiowerk

• Shape
• Book-shelf unit.

• Dimensions (WHD)
• 420 x 125 x 290 mm / 16.5 x 4.9 x 11.4 inch

• Notes

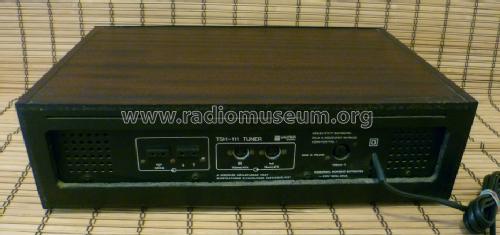

• Der Tuner TSH-111 hat Anschlüsse für TB und für einen Verstärker. 3x KW, FM nach OIRT (65 - 73,5MHz). Ein mechanischer Speicher für 5 Programmplätze (FM) ist eingebaut.

• Net weight (2.2 lb = 1 kg)
• 6.4 kg / 14 lb 1.6 oz (14.097 lb)

• Source of data
• -- Collector info (Sammler)

• Literature/Schematics (1)
• Kókai-Varsányi: Sztereó rádiók szervizkönyve, Budapest 1984.

• Author
• Model page created by Franz Scharner. See "Data change" for further contributors.
