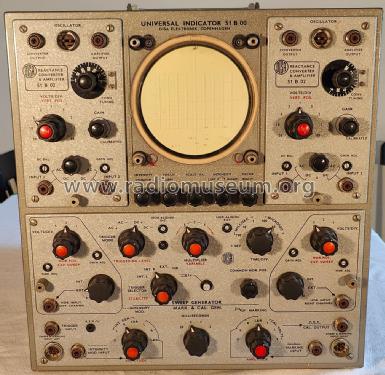

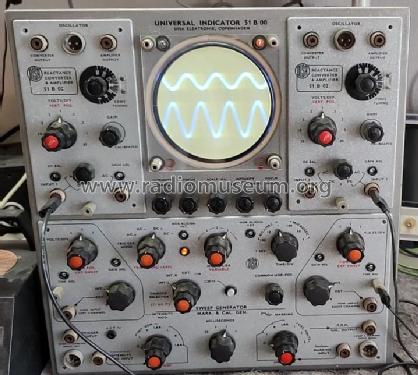

Dual Beam Precision Oscilloscope 51B00 Universal Indicator
Disa Elektronik A/S; Copenhagen
- Country
- Denmark
- Manufacturer / Brand
- Disa Elektronik A/S; Copenhagen
- Year
- 1965 ??
- Category
- Service- or Lab Equipment
- Radiomuseum.org ID
- 355002
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 46
- Valves / Tubes
- 5AFP1 EF804 EF804 EF804 EF80 ECC81 EF804 EF804 ECF80 ECF80 ECC81 EF804 EF804 6AU6 6AU6 6AL5 6AU6 6AU6 6AU6 6AU6 12AU7 12AT7 ECF80 ECC81 EH900 EH900 EH900 ECC82 ECC81 EF94 EF94 EF94 EF94 ECC82 ECF80 EL81 12AU7 6X2 6X2 6X2 6AU6 E88CC 6080 ECC83 6080 ECC83 85A2
- Number of Transistors
- Wave bands
- - without
- Power type and voltage
- Alternating Current supply (AC) / 110; 220 Volt
- Loudspeaker
- - - No sound reproduction output.
- Material
- Metal case
- from Radiomuseum.org
- Model: Dual Beam Precision Oscilloscope 51B00 Universal Indicator - Disa Elektronik A/S;
- Shape
- Boatanchor (heavy military or commercial set >20 kg).
- Notes
-
Disa Elektronik A/S;
Dual Beam Precision Oscilloscope 51 B 00 Universal Indicator"The DISA 51 B 00 Universal Indicator is a dual beam oscilloscope for the frequency range DC to 500 kc. Its vertical deflection units are of the plug-in type"
- Literature/Schematics (1)
- -- Schematic
- Author
- Model page created by Miguel Bravo-Cos. See "Data change" for further contributors.
