• Country
• Great Britain (UK)

• Manufacturer / Brand
• Dixons Retail plc; London

• Year
• 1990 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 215655

• Number of Transistors
• Semiconductors present.

• Semiconductors

• Main principle
• PLL, Phase-locked loop

• Wave bands
• Broadcast, Long Wave, Short Wave plus FM or UHF.

• Power type and voltage

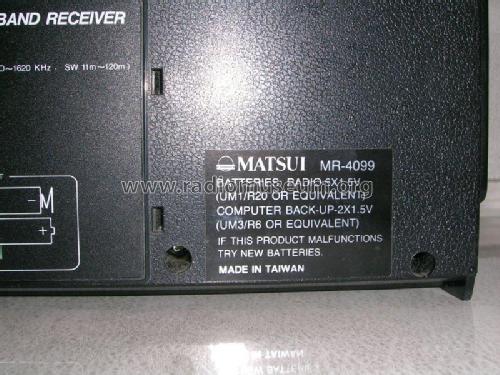

• Batteries / addl. power jack / 6 x 1,5 & 2 x 1,5 / 9 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org

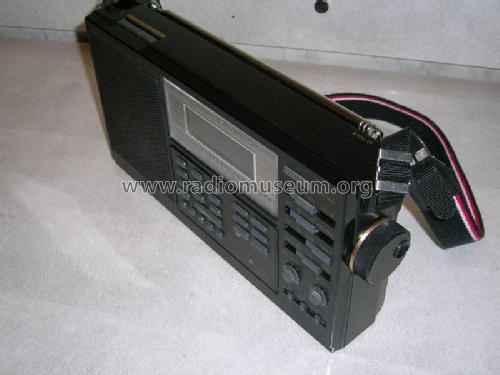

• Model: Matsui World Band Receiver MR-4099 - Dixons Retail plc; London

• Shape
• Portable set > 8 inch (also usable without mains)

• Dimensions (WHD)
• 310 x 160 x 60 mm / 12.2 x 6.3 x 2.4 inch

• Notes

• BFO.

  Probably made by Sangean. See the most similar Sangean ATS-803A.

  Made in Taiwan.

• Author
• Model page created by José Maria Santos-Sanchez. See "Data change" for further contributors.
