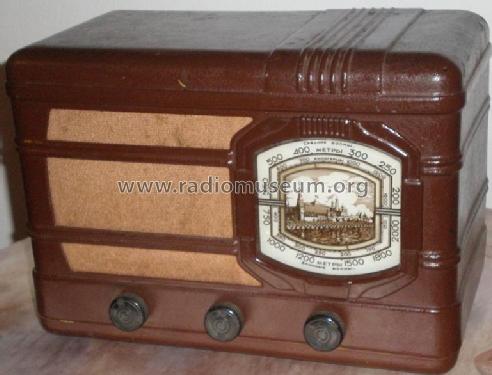

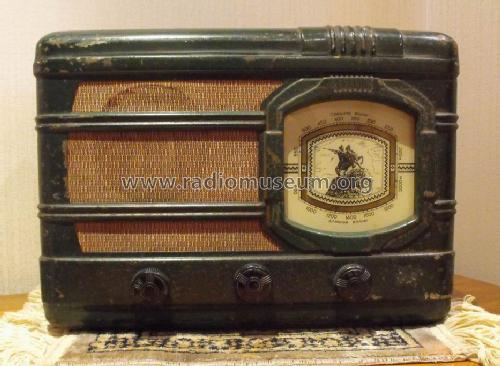

ARZ-52 {АРЗ-52}

Dnepropetrovsk Radio Works {Днепропетровский радиозавод, ДРЗ}

Data

Forum

Pictures

Collections

Country
Soviet Union

Manufacturer / Brand
Dnepropetrovsk Radio Works {Днепропетровский радиозавод, ДРЗ}

Year
1952

Category
Broadcast Receiver - or past WW2 Tuner

Radiomuseum.org ID
133620

Schematics

ARZ-52 {АРЗ-52}; Dnepropetrovsk Radio (ID = 1014459) Radio — Dnepropetrovsk Radio ARZ-52 {АРЗ-52} (3)

ARZ-52 {АРЗ-52}; Dnepropetrovsk Radio (ID = 1035898) Radio — Dnepropetrovsk Radio ARZ-52 {АРЗ-52} (3)

ARZ-52 {АРЗ-52}; Dnepropetrovsk Radio (ID = 1035904) Radio — Dnepropetrovsk Radio ARZ-52 {АРЗ-52} (3)

ARZ-52 {АРЗ-52}; Dnepropetrovsk Radio (ID = 475403) Radio — Dnepropetrovsk Radio ARZ-52 {АРЗ-52} (1)
Kaunas Lithuania

ARZ-52 {АРЗ-52}; Dnepropetrovsk Radio (ID = 897828) Radio — Dnepropetrovsk Radio ARZ-52 {АРЗ-52} (1)

ARZ-52 {АРЗ-52}; Dnepropetrovsk Radio (ID = 475404) Radio — Dnepropetrovsk Radio ARZ-52 {АРЗ-52} (1)
Kaunas Lithuania

ARZ-52 {АРЗ-52}; Dnepropetrovsk Radio (ID = 897826) Radio — Dnepropetrovsk Radio ARZ-52 {АРЗ-52} (1)

ARZ-52 {АРЗ-52}; Dnepropetrovsk Radio (ID = 897827) Radio — Dnepropetrovsk Radio ARZ-52 {АРЗ-52} (1)

ARZ-52 {АРЗ-52}; Dnepropetrovsk Radio (ID = 65894) Radio — Dnepropetrovsk Radio ARZ-52 {АРЗ-52} (1)
SU Minsk Radio Works 1951 AR3.jpg

ARZ-52 {АРЗ-52}; Dnepropetrovsk Radio (ID = 65895) Radio — Dnepropetrovsk Radio ARZ-52 {АРЗ-52} (1)
SU MRW 1951 AR3 Innenansicht.jpg

ARZ-52 {АРЗ-52}; Dnepropetrovsk Radio (ID = 65896) Radio — Dnepropetrovsk Radio ARZ-52 {АРЗ-52} (2)
SU MRW 1951 AR3 Rueckwand.jpg

ARZ-52 {АРЗ-52}; Dnepropetrovsk Radio (ID = 65897) Radio — Dnepropetrovsk Radio ARZ-52 {АРЗ-52} (1)

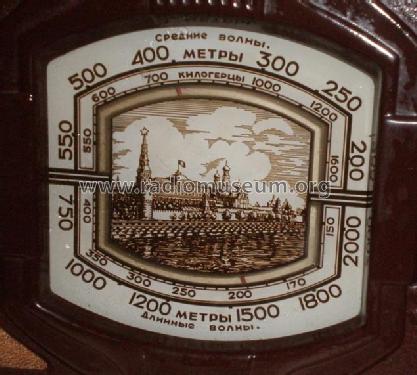

SU MRW 1951 AR3 Skala.jpg

ARZ-52 {АРЗ-52}; Dnepropetrovsk Radio (ID = 241062) Radio — Dnepropetrovsk Radio ARZ-52 {АРЗ-52} (1)
Kaunas Lithuania

ARZ-52 {АРЗ-52}; Dnepropetrovsk Radio (ID = 241063) Radio — Dnepropetrovsk Radio ARZ-52 {АРЗ-52} (1)
Kaunas Lithuania

ARZ-52 {АРЗ-52}; Dnepropetrovsk Radio (ID = 241064) Radio — Dnepropetrovsk Radio ARZ-52 {АРЗ-52} (1)
Kaunas Lithuania

ARZ-52 {АРЗ-52}; Dnepropetrovsk Radio (ID = 241065) Radio — Dnepropetrovsk Radio ARZ-52 {АРЗ-52} (1)
Kaunas Lithuania

ARZ-52 {АРЗ-52}; Dnepropetrovsk Radio (ID = 241066) Radio — Dnepropetrovsk Radio ARZ-52 {АРЗ-52} (1)
Kaunas Lithuania

ARZ-52 {АРЗ-52}; Dnepropetrovsk Radio (ID = 765550) Radio — Dnepropetrovsk Radio ARZ-52 {АРЗ-52} (1)

ARZ-52 {АРЗ-52}; Dnepropetrovsk Radio (ID = 897829) Radio — Dnepropetrovsk Radio ARZ-52 {АРЗ-52} (1)

ARZ-52 {АРЗ-52}; Dnepropetrovsk Radio (ID = 914241) Radio — Dnepropetrovsk Radio ARZ-52 {АРЗ-52} (1)

ARZ-52 {АРЗ-52}; Dnepropetrovsk Radio (ID = 914242) Radio — Dnepropetrovsk Radio ARZ-52 {АРЗ-52} (1)

ARZ-52 {АРЗ-52}; Dnepropetrovsk Radio (ID = 952337) Radio — Dnepropetrovsk Radio ARZ-52 {АРЗ-52} (1)

ARZ-52 {АРЗ-52}; Dnepropetrovsk Radio (ID = 2592118) Radio — Dnepropetrovsk Radio ARZ-52 {АРЗ-52} (1)

ARZ-52 {АРЗ-52}; Dnepropetrovsk Radio (ID = 2592119) Radio — Dnepropetrovsk Radio ARZ-52 {АРЗ-52} (1)

ARZ-52 {АРЗ-52}; Dnepropetrovsk Radio (ID = 2592120) Radio — Dnepropetrovsk Radio ARZ-52 {АРЗ-52} (1)

ARZ-52 {АРЗ-52}; Dnepropetrovsk Radio (ID = 2592121) Radio — Dnepropetrovsk Radio ARZ-52 {АРЗ-52} (1)

ARZ-52 {АРЗ-52}; Dnepropetrovsk Radio (ID = 2592124) Radio — Dnepropetrovsk Radio ARZ-52 {АРЗ-52} (1)

Click on the schematic thumbnail to request the schematic as a free document.

Technical Specifications

Number of Tubes
4

Valves / Tubes
6А10С 6Б8С 6П6С 6Ц5С

Main principle
Superheterodyne (common); ZF/IF 465 kHz

Tuned circuits
6 AM circuit(s)

Wave bands
Broadcast (MW) and Long Wave.

Power type and voltage
Alternating Current supply (AC) / 127; 220 Volt

Loudspeaker
Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 10 cm = 3.9 inch

Power out
0.5 W (unknown quality)

Material
Metal case

from Radiomuseum.org
Model: ARZ-52 {АРЗ-52} - Dnepropetrovsk Radio Works {Дн

Shape
Tablemodel, with any shape - general.

Dimensions (WHD)
350 x 255 x 175 mm / 13.8 x 10 x 6.9 inch

Notes
Produced in others SU Radio Works too(see in RMorg)

Net weight (2.2 lb = 1 kg)
5.5 kg / 12 lb 1.8 oz (12.115 lb)

Mentioned in
- - Data from my own collection

Literature/Schematics (1)
-- Schematic

Author
Model page created by Zenonas Langaitis. See "Data change" for further contributors.
