• Country
• Soviet Union

• Manufacturer / Brand
• Dnepropetrovsk Radio Works {Днепропетровский радиозавод, ДРЗ}

• Year
• 1971

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 123080

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 9

• Semiconductors

• Main principle
• Superheterodyne (common)

• Wave bands
• Broadcast, Long Wave and 2 x Short Wave.

• Details
• Record Player (not changer)

• Power type and voltage
• Dry Batteries / 6 x 1,5 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 8 cm = 3.1 inch

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org

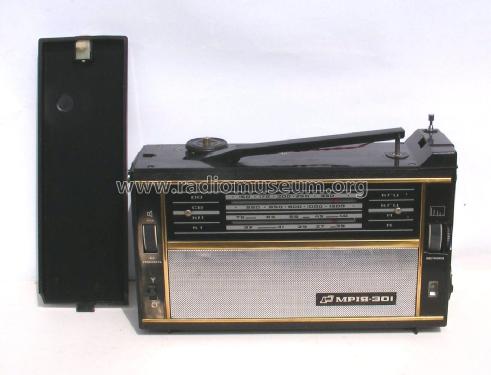

• Model: Mriâ {Мрия} 301 - Dnepropetrovsk Radio Works {Дн

• Shape
• Portable set > 8 inch (also usable without mains)

• Dimensions (WHD)
• 288 x 117 x 90 mm / 11.3 x 4.6 x 3.5 inch

• Notes

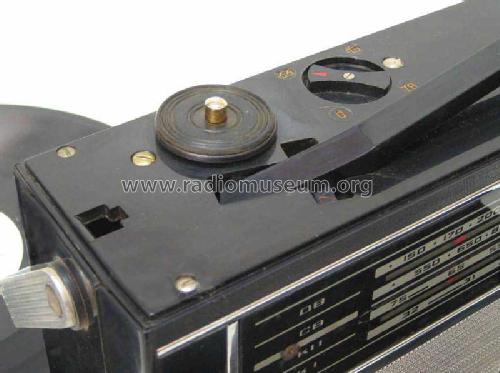

• Kurzwellenlupe, Plattenpieler mit 33/45/78 Geschwindigkeit.

• Net weight (2.2 lb = 1 kg)
• 3 kg / 6 lb 9.7 oz (6.608 lb)

• Price in first year of sale
• 100.00 rubel

• Source of data
• - - Data from my own collection

• Author
• Model page created by Jörg Kulbe. See "Data change" for further contributors.
