CB-Mobilfunkgerät Cockpit 4012 AM/FM
DNT Drahtlose Nachrichtentechnik; Dietzenbach
- Country
- Germany
- Manufacturer / Brand
- DNT Drahtlose Nachrichtentechnik; Dietzenbach
- Year
- 1990 ??
- Category
- Citizen Band Equipment
- Radiomuseum.org ID
- 249418

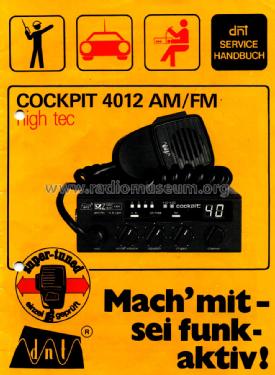

Service Manual
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Transistors
- Semiconductors present.
- Main principle
- Transceiver; ZF/IF 10695/455 kHz
- Wave bands
- Short Wave (SW only)
- Power type and voltage
- Storage Battery for all (e.g. for car radios and amateur radios) / 12-15 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- Power out
- 2.5 W (undistorted)
- Material
- Metal case
- from Radiomuseum.org
- Model: CB-Mobilfunkgerät Cockpit 4012 AM/FM - DNT Drahtlose
- Shape
- Chassis only or for «building in»
- Notes
-
CB-Mobilfunkgerät.
12 Kanäle AM 1 Watt, 40 Kanäle FM 4 Watt.
LED-Zeile für Sendeleistung / S-Meter.
Taster für Störbegrenzer.
- Literature/Schematics (1)
- -- Original-techn. papers.
- Author
- Model page created by a member from D. See "Data change" for further contributors.
