• Country
• Germany

• Manufacturer / Brand
• DNT Drahtlose Nachrichtentechnik; Dietzenbach

• Year
• 1983 ??

• Category
• Citizen Band Equipment

• Radiomuseum.org ID
• 269710

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 18

• Semiconductors

• Main principle
• Superhet, double/triple conversion; ZF/IF 10700/455 kHz

• Wave bands
• Short Wave (SW only)

• Power type and voltage
• Storage and/or dry batteries / AA: 10 x 1,5 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Power out
• 0.5 W (unknown quality)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org

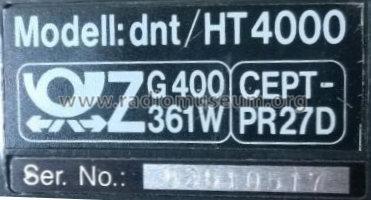

• Model: High Tec HT4000FM - DNT Drahtlose

• Shape
• Portable set > 8 inch (also usable without mains)

• Dimensions (WHD)
• 75 x 220 x 58 mm / 3 x 8.7 x 2.3 inch

• Notes
• • 5 ICs
  • CB-Handfunkgerät
  • 40 Kanäle nur FM
  • Ladebuchse für Akkus
  • Teleskopantenne
  • S-Meter analog
  • Digiale Kanalanzeige abschaltbar (Energiesparen)

• Net weight (2.2 lb = 1 kg)
• 0.5 kg / 1 lb 1.6 oz (1.101 lb)

• Price in first year of sale
• 200.00 DM

• Author
• Model page created by Daniel Burkei. See "Data change" for further contributors.
