Doolittle Receiver
Doolittle Co., F.M.; New Haven, Connecticut
- Country
- United States of America (USA)
- Manufacturer / Brand
- Doolittle Co., F.M.; New Haven, Connecticut
- Year
- 1922 ?
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 217978

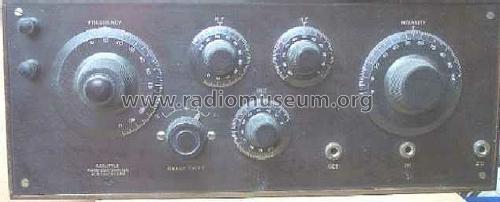

Picture courtesy of Antique Radio Forums
Picture courtesy of Antique Radio Forums
- Number of Tubes
- 6
- Main principle
- TRF without regeneration; 2 AF stage(s)
- Tuned circuits
- 3 AM circuit(s)
- Wave bands
- Broadcast only (MW).
- Power type and voltage
- Storage and/or dry batteries
- Loudspeaker
- - This model requires external speaker(s).
- Material
- Wooden case
- from Radiomuseum.org
- Model: Doolittle Receiver - Doolittle Co., F.M.; New Haven
- Shape
- Tablemodel, Box - most often with Lid (NOT slant panel).
- Notes
-
Doolittle Radio Corp. "Doolittle Receiver" Circa 1922 Six-tube TRF receiver utilizing Federal RF transformers and Amrad audio transformers.
- Literature/Schematics (1)
- February 1996 Antique Radio Classified magazine
- Author
- Model page created by Alan Larsen. See "Data change" for further contributors.
