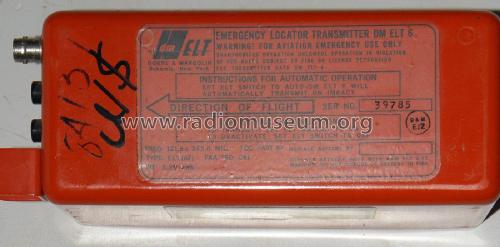

Emergency Locator Transmitter DM ELT 6.1
Dorne & Margolin; Bohemia, NY
- Country
- United States of America (USA)
- Manufacturer / Brand
- Dorne & Margolin; Bohemia, NY
- Year
- 1980 ??
- Category
- Commercial Transmitter (TX not Transceiver)
- Radiomuseum.org ID
- 276400

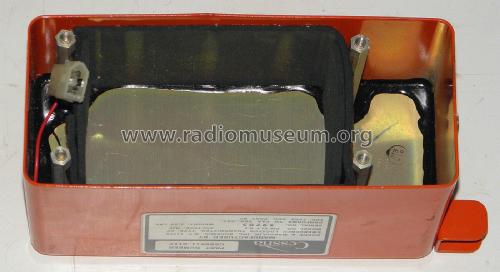

Batteriefach, Batterie entnommen.
- Number of Transistors
- Semiconductors present.
- Semiconductors
- Main principle
- Transmitter
- Wave bands
- VHF incl. FM and/or UHF (see notes for details)
- Power type and voltage
- Storage and/or dry batteries / 9 Volt
- Loudspeaker
- - - No sound reproduction output.
- Material
- Metal case
- from Radiomuseum.org
- Model: Emergency Locator Transmitter DM ELT 6.1 - Dorne & Margolin; Bohemia, NY
- Shape
- Chassis only or for «building in»
- Dimensions (WHD)
- 85 x 100 x 225 mm / 3.3 x 3.9 x 8.9 inch
- Notes
-
Notsender für kleine Flugzeuge, war in den USA als Ausrüstungsteil vorgeschrieben.
Sendet gleichzeitig Notsignal auf 121,5 MHz (zivile Flugfunk-Notfrequenz) und auf 243,0 MHz (militärische Flugfunk-Notfrequenz).
Bei Schaltung "AUTO" wird der Notsender automatisch bei Crash des Flugzeugs aktiviert.
- Net weight (2.2 lb = 1 kg)
- 0.6 kg / 1 lb 5.1 oz (1.322 lb)
- Author
- Model page created by Siegfried Droese. See "Data change" for further contributors.
