• Country
• United States of America (USA)

• Manufacturer / Brand
• Drake, R.L. Miamisburg, Ohio

• Year
• 1981–1983 ?

• Category
• Amateur-Receiver (amateur bands, may include broadcast bands)

• Radiomuseum.org ID
• 73746

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• Semiconductors present.

• Semiconductors

• Main principle
• Superhet, double/triple conversion; ZF/IF 48050/5645 kHz

• Wave bands
• Broadcast, Long Wave and more than two Short Wave bands.

• Power type and voltage
• Alternating Current supply (AC) / 100-240 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Power out
• 2.5 W (unknown quality)

• Material
• Various materials

• from Radiomuseum.org

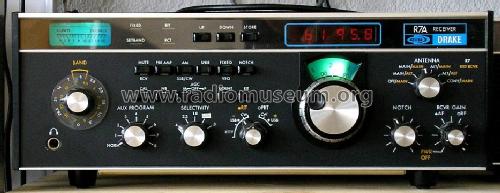

• Model: R-7A - Drake, R.L. Miamisburg, Ohio

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 13.6 x 4.6 x 13 inch / 345 x 117 x 330 mm

• Notes
• Coverage 10 kHz - 30 MHz, AM, USB / LSB, CW;
  R-7 with factory installed additional boards DR-7 (freq display), AUX-7 (additional fixed freqs), NB-7A (noise blanker); optional MS-7 matching speaker.

• Net weight (2.2 lb = 1 kg)
• 8.3 kg / 18 lb 4.5 oz (18.282 lb)

• Source of data
• Shortwave Receivers - Past & Present (3rd ed.)

• Author
• Model page created by Martin Bösch. See "Data change" for further contributors.
