• Country
• United States of America (USA)

• Manufacturer / Brand
• Drake, R.L. Miamisburg, Ohio

• Year
• 1964

• Category
• Amateur Transmitter (only)

• Radiomuseum.org ID
• 91970

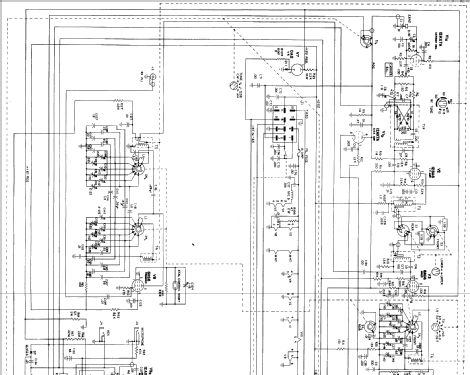

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 11

• Valves / Tubes

• Wave bands
• Short Wave (SW only)

• Power type and voltage
• Alternating Current supply (AC)

• Loudspeaker
• - - No sound reproduction output.

• Material
• Metal case

• from Radiomuseum.org
• Model: Reciter T-4 - Drake, R.L. Miamisburg, Ohio

• Shape
• Tablemodel, with any shape - general.

• Dimensions (WHD)
• 10.75 x 5.5 x 12.25 inch / 273 x 140 x 311 mm

• Notes
• Transmitter matching the R-4 receiver, transmitting frequency controlled bei receiver VFO or crystals.
  P_out AM, SSB 200W PEP, CW 200W

• Price in first year of sale
• 270.00 $

• Author
• Model page created by Martin Bösch. See "Data change" for further contributors.
