- Country
- United States of America (USA)
- Manufacturer / Brand
- Drake, R.L. Miamisburg, Ohio
- Year
- 1977 ?
- Category
- Amateur TRX: Transmitter/Receiver (and Transceiver)
- Radiomuseum.org ID
- 92393

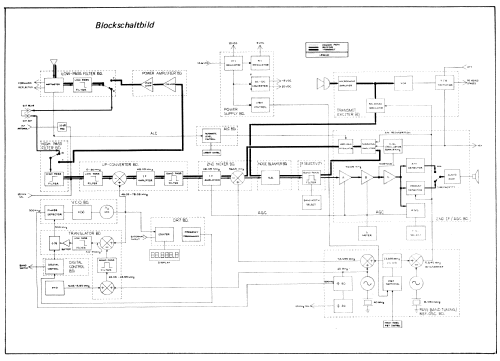

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Transistors
- Semiconductors present.
- Semiconductors
- Main principle
- Transceiver
- Wave bands
- Short Wave (SW only)

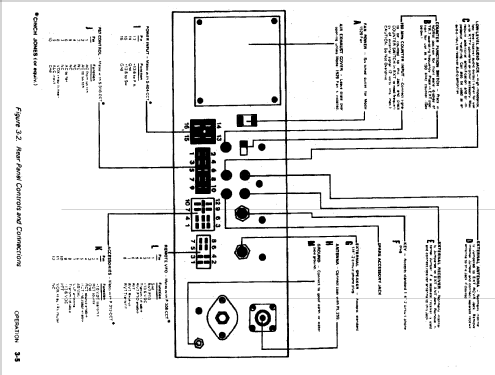

- Power type and voltage
- Powered by external power supply or a main unit. / 13.6 Volt

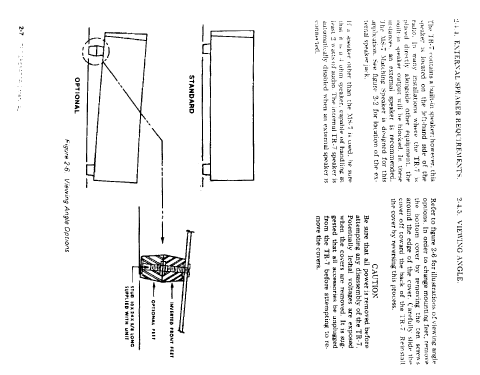

- Loudspeaker
- - This model requires external speaker(s).
- Power out
- 2 W (unknown quality)
- Material
- Metal case
- from Radiomuseum.org

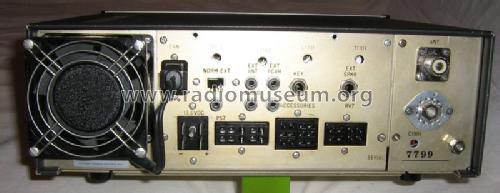

- Model: TR-7 - Drake, R.L. Miamisburg, Ohio
- Shape
- Tablemodel, with any shape - general.
- Dimensions (WHD)
- 346 x 117 x 318 mm / 13.6 x 4.6 x 12.5 inch
- Notes

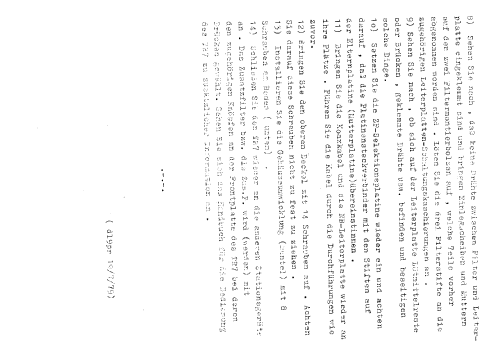

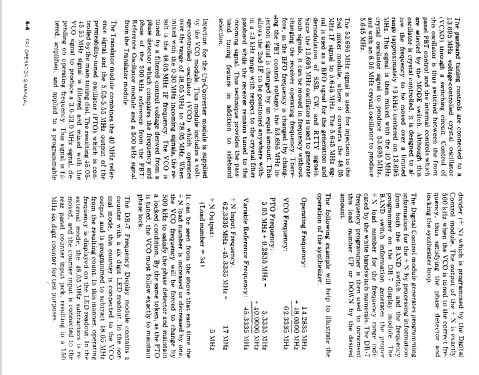

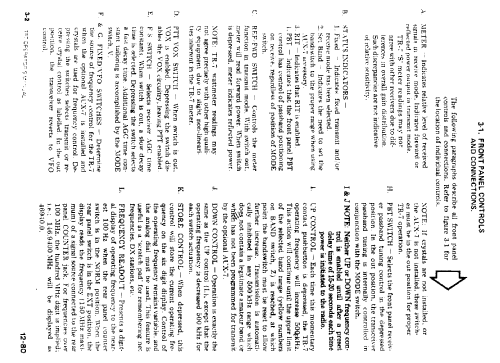

- Transceiver covering 160 - 10 m ham bands, continuous reception 10 kHz - 30 MHz with DR-7 board installed, USB, LSB, CW;
optional MS-7 external speaker, external PS-7 or PS-75 power supply, optional NB-7 noise blanker. Only few sets came without digital readout DR-7 board, with analog dial and ham band coverage only.
- Net weight (2.2 lb = 1 kg)
- 6.4 kg / 14 lb 1.6 oz (14.097 lb)
- Source of data
- -- Original prospect or advert
- Mentioned in
- Funkschau (17/1978 S. 840)
- Author
- Model page created by Martin Bösch. See "Data change" for further contributors.
